Product introduction
-
01 Product application UL&CUL certified PVC wiring cable for inner sheath wiring of electrical and electronic equipment in control cabinet.
-
02 Product characteristics
• International certified control cable (UL&CUL)
• All common standard colors are available
-
03 Technical certification • Conform to RoH
• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
• We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.

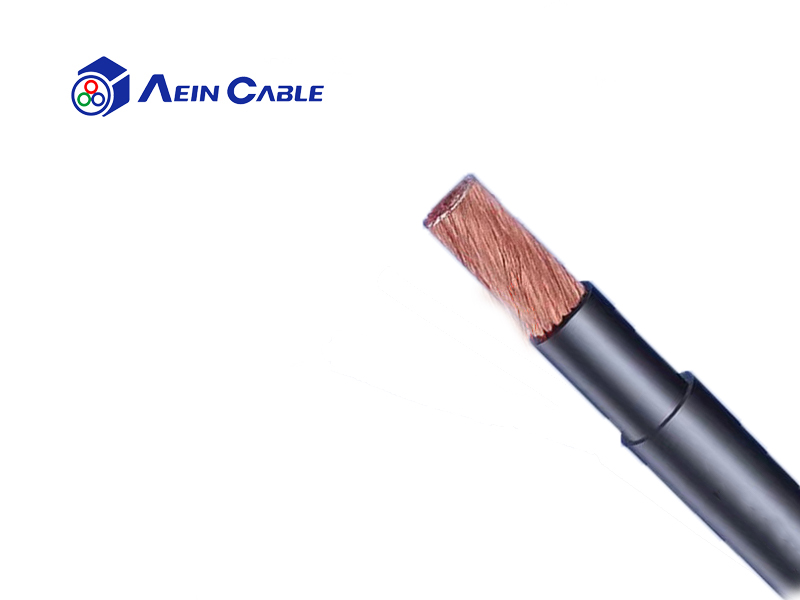

Product structure
Conductor material: copper stranded wire
Conductor class: acc. to UL758, class 5 acc. to IEC 60228
Core insulation: PVC, XLPE
Sheath: PVC
Core identification: different colors
Rated voltage:1000V
Testing voltage: 3000V
Conductor resistance: UL1581 ASTM class C
Minimum bending radius fixed: 7.5 x d
Minimum bending radius moved: 15 x d
Operat. temp. fixed min/max: -15°C/80°C
Burning behavior: self-extinguishing, flame-retardant conform to IEC60332-1-2.UL - VW 1 and FT 1
Certification: UL&CUL, CE
Product identification: E503807 ® AWM Model number specification temperature voltage VW-1 or C® AWM I A specification temperature voltage FT1
Product parameter
