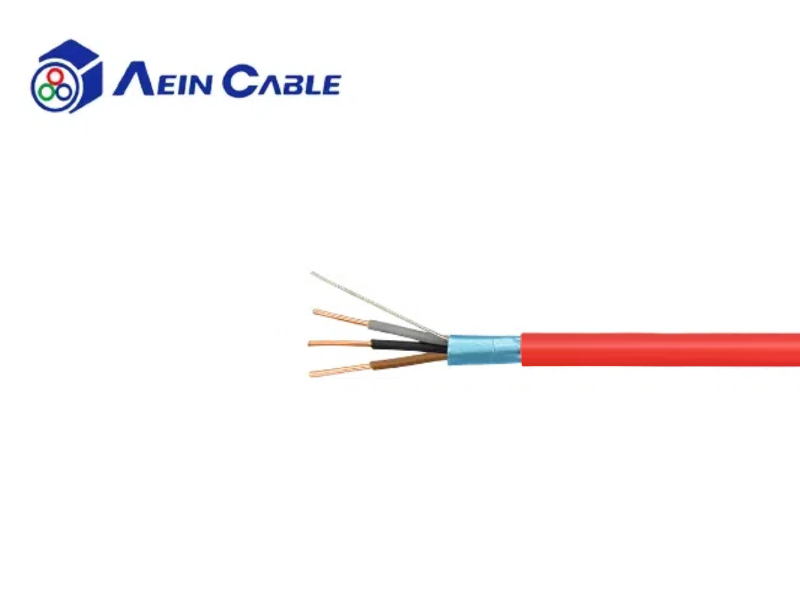

UL1424 FPLP 105℃ 300V PVC Fire Alarm Cable

Fire cables are mainly used for emergency lighting, fire observation, signal sensing systems, blower systems, communication call systems, control equipment systems, fire pumps and fire alarm system circuit cables, etc. For example: school offices, airports,tunnels, railway stations, computers, alarm systems, traffic control systems, fire protection systems, etc.

inquiry

Product details

Product introduction

01 Product application

Fire cables are mainly used for emergency lighting, fire observation, signal sensing systems, blower systems, communication call systems, control equipment systems, fire pumps and fire alarm system circuit cables, etc. For example: school offices, airports, tunnels, railway stations, computers, alarm systems, traffic control systems, fire protection systems, etc.
02 Product characteristics
flame retardant self-extinguishing Fireproof
03 Technical certification ·Standard: UL1424/NEC Article 760
·Compliance: FPLR/CMR/CL3R, flame test UL1666 .RoHS (European Directive 22/95/EC)
.We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

CONDUCTOR :Bare copper （Complies with IEC 60228 cl. 1 standard, Complies with IEC 60228 c1.2 standard）

INSULATION : LS-PVC

DRAINAGE WIRE: 1/0.404+0.008mm solid tinned copper (optional)

INNER SHEATH :PVC compound to EN50290-2-22

SHIELDING: Aluminum foil (optional)

OUTER SHEATH: LS-PVC

SHEATH COLOR: red or natural color, etc.

TEST VOLTAGE: DC: 2500V/2S, no breakdown

MAX. resistance: 5.31 Ohms/KM at 20°C

MIN. insulation resistance: 100 MΩ/KFT at 15.6°C

RATED VOLTAGE :300 V

WORKING TEMPERATURE :-20°C / + 105°C

STANDARD: Insulation and sheathing comply with UL1581

Flame Propagation (single insulation): UL 2556

Flame Propagation (Multiple Cables): UL1666

Keywords: American UL1424 certification cable
