Product introduction
-
01 Product application Cable can be used power, control and connection cables in power installations for lossless data and signal transmission, fixed laying and mobile applications, without tensile stress and without prescribed cable wiring. Suitable for dry, wet and damp rooms.
-
02 Product characteristics • UL&CUL certification
• Flame retardant coincidence IEC 60332-1-2,FT1,VW-1
• Up to 1000 V parallel laying with other cables with identical current voltage is permitted
• Recommend for EMC compatible application
-
03 Technical certification •Conform to RoHS standard
•Conform to 2014/35/EU-Guideline(" Low voltage Command ")CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

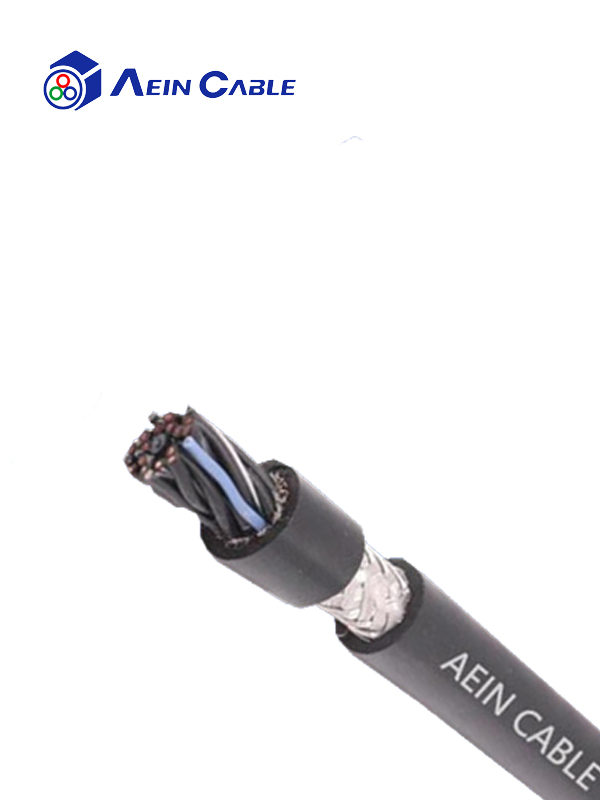

Product structure
Conductor material: Bare copper
Conductor class: acc. to UL758 Standard, DIN VDE 0295 Conductor 5 pt.4 or. IEC 60228 Conductor 5 pt.4
Core insulation:PVC,XLPE optional
Core identification: acc. to DIN VDE 0293 Black with white numbering,1 x GNYE
Stranding: Strand in layers
Shield: Tinned copper wire braid, shielding density＞70%
Outer sheath:PVC
Sheath color: gray RAL 7001 or black RAL9005
Rated voltage:1000V
Test voltage: core/core: 3 kV; core/shield: 2 kV
Conductor resistance:UL1581 ASTM C class
Minimum bending radius fixed:4x d
Minimum bending radius shift:10x d
Operat. temp. fixed min/max: -15 °C / +105 °C
Operat. temp. moved min/max: -5 °C / +105 °C
Burning behavor: Flame retardant grade meets. IEC 60332-1-2, FT1, VW-1
Approvals:UL&CUL&CE
Product identification:ein bei ke E503807 ® AWM Model number specification temperature voltage c® AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI AEIN Model number
specification voltage CE
Product parameter
