Conductor material: Bare copper or tin plating
Conductor type: acc. to UL758 Standard,ASTM B3 or ASTM B33 standard,DIN VDE 0295 Conductor 5 pt.4 or. IEC 60228 5 Conductor pt.4
Core insulation:PVC
Core wire identification:< 20AWG:5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥18AWG: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements

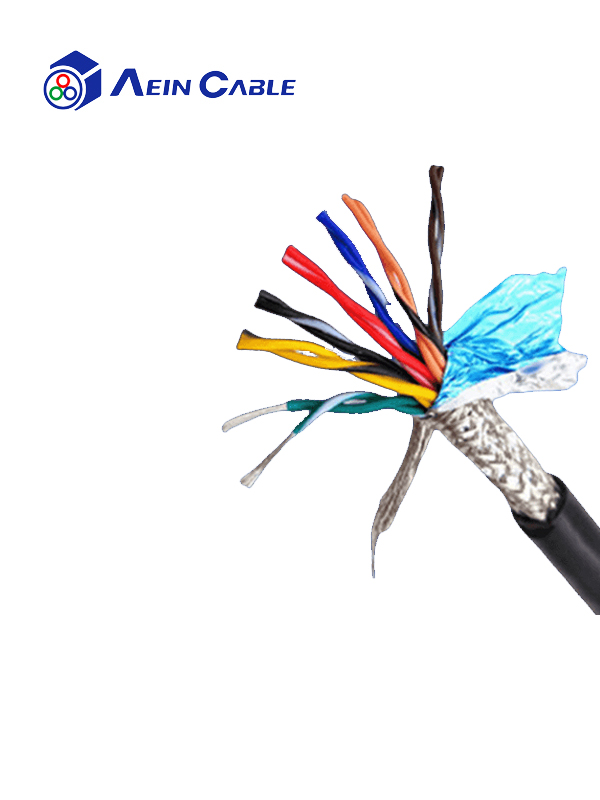

Stranding :The core wire is twisted into a pair; Layering of pairs
Shield:Tinned copper braid; Coverage is about70%
Outer sheath:PVC(-40 Sheath)
Sheath color: Gray RAL7001 or Black RAL9005
Rated voltage:300V
Test voltage: core/Core:2.0 kV; core/Shield:1.5 kV
Conductor resistance:UL1581 ASTM Cclass
Insulation resistance:+20 °C ≥ 20 MΩ x km
Minimum bending radius fixed:7.5x d
Minimum bending radius flexible:15x d
Operat. temp. fixed min/max:-40 °C / +105 °C
Operat. temp. moved min/max:-30 °C / +105 °C
Burning behavor: Self - extinguishing and flame retardantUL1581VW-1;CSA C22.2 No.2556-15 FT1,FT2;IEC 60332-1-2 standard
Certification:UL&CUL:UL1569,UL2517
CE:LiYCY-TP If needed CE certification requirements should be specified separately
Product identification:Aein bei ke E503807 ® AWM Model number specification temperature voltage c® AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI AEIN Meter scale & SHANGHAI AEIN Model number specification voltage CE
