Product introduction
-
01 Product application

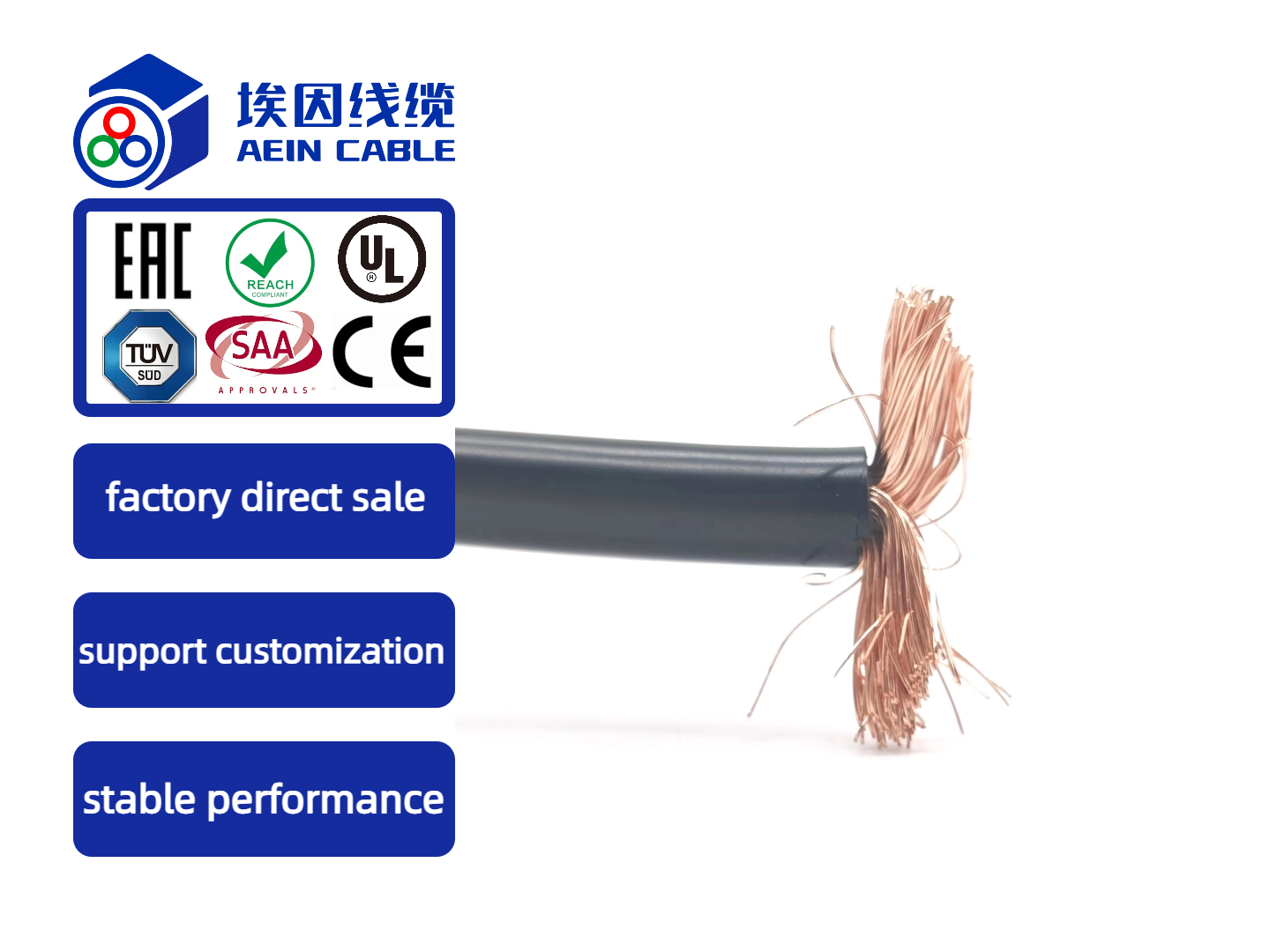

UL&CUL certified halogen-free cross-linked stranded wire, used for telecommunications units and electrical modules, as well as telecommunications facility wiring. This halogen-free, environmentally friendly single core cable is used for internal
wiring of equipment
Signal facilities are allowed to be installed on walls and within pipelines on walls.
-
02 Product characteristics
Flame retardant
Resistant to water, oil, acids, solvents and fungus.
-
03 Technical certification
•C onform to 2014/35/EU-Guideline (''Low voltage Directive'') CE •We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor : Bare Copper(Tinned on request)
Core identification : different colors
Insulation: XLPE
Rated voltage: 1000V
Test voltage: 3000V
Conductor resistance: UL1581 ASTM Class C
Minimum bending radius fixed : 4 xd
Minimum bending radius moved : 15 xd
Fixed minimum/maximum working temperature:- 40°C/90°C
Halogen free according to IEC 60754
Smoke density complies with IEC 61034
Bruning behavior : Self extinguishing and flame retardant properties comply with IEC 60332-1-2 FT2
Standard: UL758 CE
Product identification: Product identification: Aein bei ke E503807 brother AWM Model number specification temperature voltage or cbrother AWM Ⅰ A specification temperature voltage FT2 SHANGHAI AEIN
