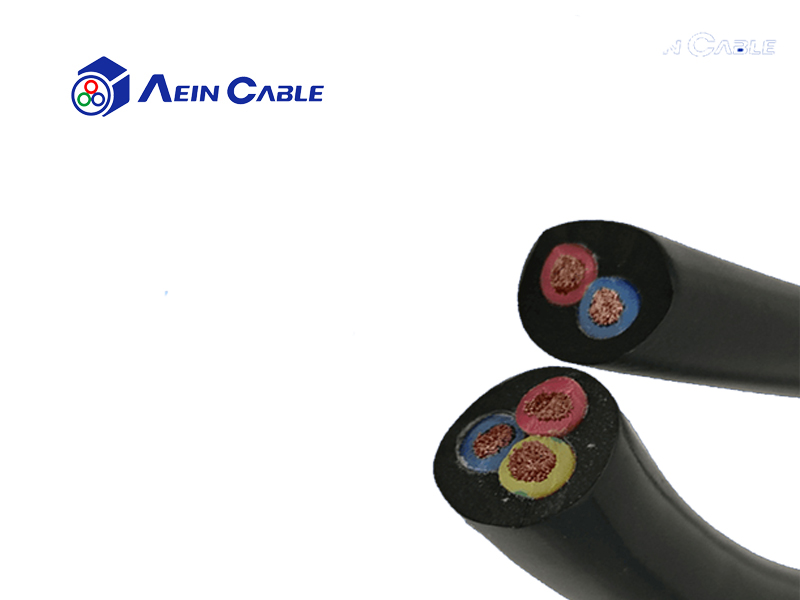

SOW UL Certified Rubber Cable

SOW UL Certified Rubber Cable

SOW UL Certified Rubber Cable

UL& CUL certified, suitable for indoor/outdoor. Portable tools, equipment, small motors and related machinery, appliances, equipment of electrical equipment, exposed to oil, solvents, flame, moisture, or requiring flexibility and durability. Suitable for applications up to 600 V and temperatures from -40°C to +105°C.

inquiry
  • Product details
Product introduction
  • 01 Product application

    Designed for industrial equipment, heavy tools, electrical and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, ship dock power supply and mining applications. Suitable for indoor/outdoor. Portable tools, equipment, small motors and related machinery, appliances, equipment of electrical equipment, exposed to oil, solvents, flame, moisture, or requiring flexibility and durability. Suitable for applications up to 600 V and temperatures from -40°C to +105°C.

  • 02 Product characteristics

    Excellent resistance to oils, acids, chemicals, water, ozone, extreme temperatures, cuting, tearing and abrasion.

    S = Extra hard service (rated for 600V)
    O = Oil resistant outer jacket
    W = Weather and water-resistant - outdoor rated (note: this is NOT the same as Type W, another kind of portable cord)
  • 03 Technical certification • Conform to UL62
    • Conform to CSA C22.2-49
    • Conform to RoHS
    • UL/CSA certification
    • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.
Product structure

Conductor material: copper stranded wire

Conductor class: class 5 acc. to DIN VDE 0295, class 5 acc. to IEC 60228

Core insulation: EP

Core identification: ≤5 cores: black, white, red, yellow green (green), orange   above 5 cores: black RAL9005 cable, with white numbers,  yellow or green cables can be choose

Shielding density: ≥85%

Outer sheath: CPE

Jacket color: black RAL9005 (optional)

Rated voltage: 600V

Testing voltage: ≤13AWG 2000V,  12AWG-9AWG  3000V,  8AWG-2AWG  4000V

Minimum bending radius fixed: 7.5 x d

Minimum bending radius moved: 10 x d

Operat. temp. fixed min/max: -40 °C / +105 °C  -40 °C / +90 °C  -40 °C / +75 °C  -40 °C / +60 °C

Operat. temp. moved min/max: -40 °C / +105 °C  -40 °C / +90 °C  -40 °C / +75 °C  -40 °C / +60 °C

Burning behavior: flame-retardant conform to IEC60332-1-2  FT1  VW-1

Oil resistance: acc. to EN 60811-2-1

Certification:  CE: H07RN-F,H07BN4-F,H07RN8-F     If you need CE certification, please indicate separately.

Product identification: Aein bei ke  E503806 (UL) Model number  *×**AWG(**mm²) temperature voltage  c(UL) Model number  *×**mm²(**AWG) temperature voltage    FT2

Product parameter
Click to download the product documentation
