Product introduction
-
01 Product application
It is suitable for fixed installation and occasional bending situations where there is free and non-continuous reciprocating movement without tensile load. It is suitable for torsional applications in dry or damp Spaces subjected to moderate mechanical
loads, with typical application scenarios being the bridging areas in wind turbines (WTGS).
-
02 Product characteristics· It is mainly resistant to acids and alkalis
· The oil resistance complies with the DIN EN 50290-2-22(TM54) standard
-
03 Technical certification· Comply with RoHS standards
· Comply with the 2014/35/EU standard "Low Voltage Directive" CE.· Customization is acceptable for products with special structures, other sizes, core wires and sheath colors.

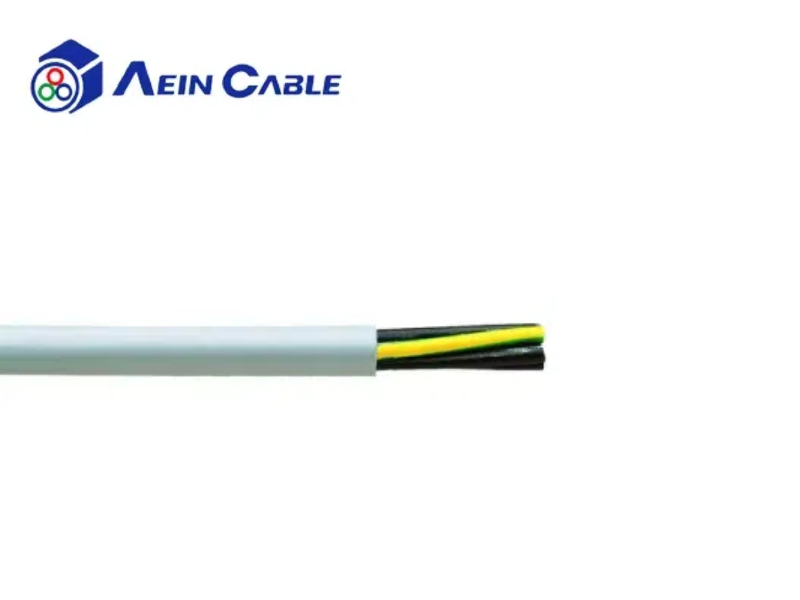

Product structure
Conductor material: Bare copper wire
Conductor grade: Complies with IEC60228 cl.5 standard
Core wire insulation :PVC-J-80-005
Core wire marking :< 0.5mm ²: For cables with 5 cores and below, color separation is used for distinction, in accordance with n.DIN 47100. For multi-core cables with more than 5 cores, color separation is used for core wires, with white ink dots for
distinction. ≥ 0.5mm ² Cables with 5 cores or fewer are distinguished by color separation, including yellow and green wires, in compliance with n.DIN 47100. For multi-core cables with more than 5 cores, black core wires are used and distinguished
by white ink numbers (customized as needed if there are special requirements).
Stranding: Layered stranding
Outer sheath material :DOPVC-H-80-005
Outer sheath color: Grey RAL 7001
Rated voltage :300/500 V
Test voltage :2 kV
The minimum bending radius is fixed at 4xd
The small bending radius moves 15 xd
The temperature rating is fixed at -40°C/+80°C
Temperature range: -5°C/+80°C
Operating temperature: + 80 °C Short-circuit temperature of +150℃
Standard: Complies with EN 50525-2-51
Product Identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter mark
