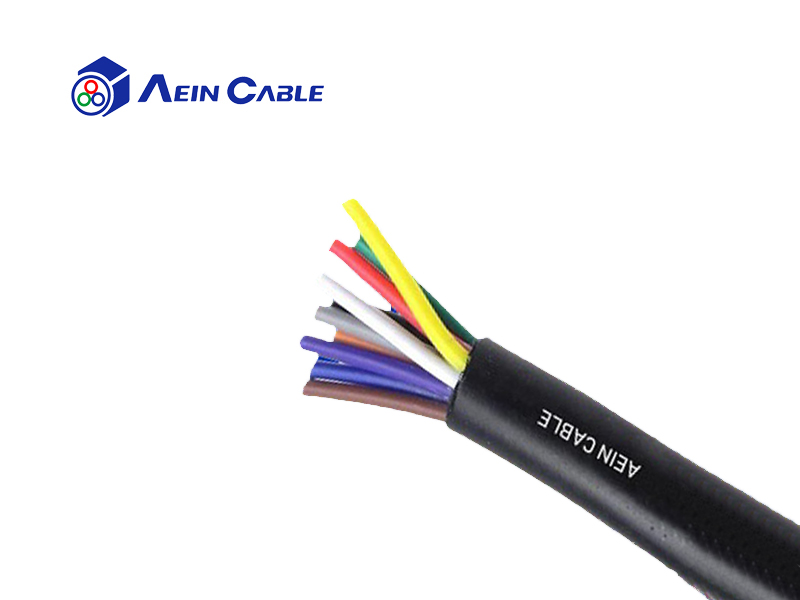

Product introduction
-
01 Product application Suitable for fixed installation and no tensile load free, non-continuous reciprocating movement of occasional bending occasions. And dry or wet Spaces subject to moderate mechanical load,Suitable for torsional applications. Typical applications are wind turbines (WTG) in the spanning region.
-
02 Product characteristics • Mainly can resist acid, alkali
Oil resistance In accordance with DIN EN 50290-2-22 (TM54)standard
-
03 Technical certification · Conform to RoHS standard
· Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
· We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Structural parameter
Conductor material: bare copper wire
Conductor class: In accordance with IEC60228 cl.5standard
Core insulation:PVC-J-80-005
Core identification < 0,5 mm²:5Core and below the use of color separation, in line withn. DIN 47100.5Multi-core cable above core adopts core separation , white ink dot distinguish; ≥ 0,5
mm²: 5Core and below use color separation, containing yellow/Green line, matchn. DIN 47100.5Multi-core cable above the core adopts black core wire, white ink numbered to distinguish(If there are special requirements to customize)
Hinge:Layered stranding
Outer sheathing material:DQ PVC-H-80-005
Color of outer sheath:grey RAL 7001
Rated voltage:300/500 V
Test voltage:2 kV
Min. bending radius fixed 4 x d
Min. bending radius moved 15 x d
Operat. temp. fixed min/max -40 °C / +80 °C
Operat. temp. moved min/max -5 °C / +80 °C
Maximum temperature + 80 °C Operating temperature; +150 °C Short-circuit temperature
Standard:Conform to EN 50525-2-51
Product identification Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
Product parameter
