Product introduction

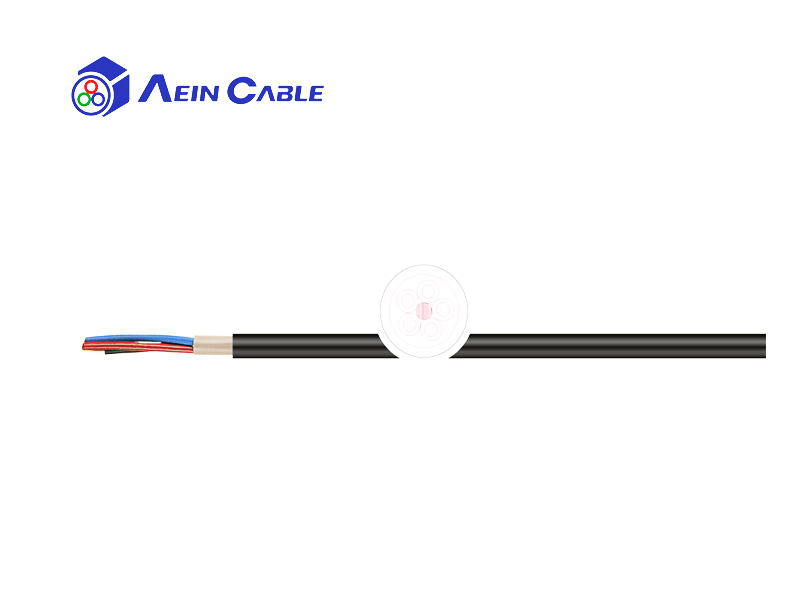

  • 01 Product application As connecting cable for the internal and external wiring of filling-station pumps, petrol station systems, data collection systems and in such areas where an increased oil- and petrol resistance is demanded or regulated by law. Also suitable for laying directly in the ground.
  • 02 Product characteristics free from lacquer damaging substances and silicone (during production)

  • 03 Technical certification

    c onform to RoHS

    •conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •we are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper conductor
Conductor class: Acc. to DIN VDE 0295 class 1 resp. IEC 60228 cl. 1
Core insulation: PVC
Core identification: Acc. to DIN VDE 0293-308 up to 5 cores coloured, from 6 cores black with white numerals with or without GNYE
Overall stranding: Cores stranded in layers
Inner sheath material: Filler sheath
Outer sheath: PVC, oil and petrol resistant
Sheath colour: Black or blue
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 4 kV
Insulation resistance: 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: 15 x d
Operat. temp. fixed min/max: -30 °C / +70 °C
Operat. temp. moved min/max: -5 °C / +50 °C
Standard: Similar to DIN VDE 0250
