Product introduction
  • 01 Product application Power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms (also water-oil mixture). Outdoor use (only black type), but no laying underground.
  • 02 Product characteristics resistant to oil, largely resistant to acids and bases
    LABS-/silicon-free (during production)
    due to 1.000 V UL/CSA approval parallel laying with other 1.000 V cables is permitted recommended for EMC-applications
    black type: UV-resistant
  • 03 Technical certification

    conform to RoHS

    conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

    VDE production-expertise (VDE-Reg)

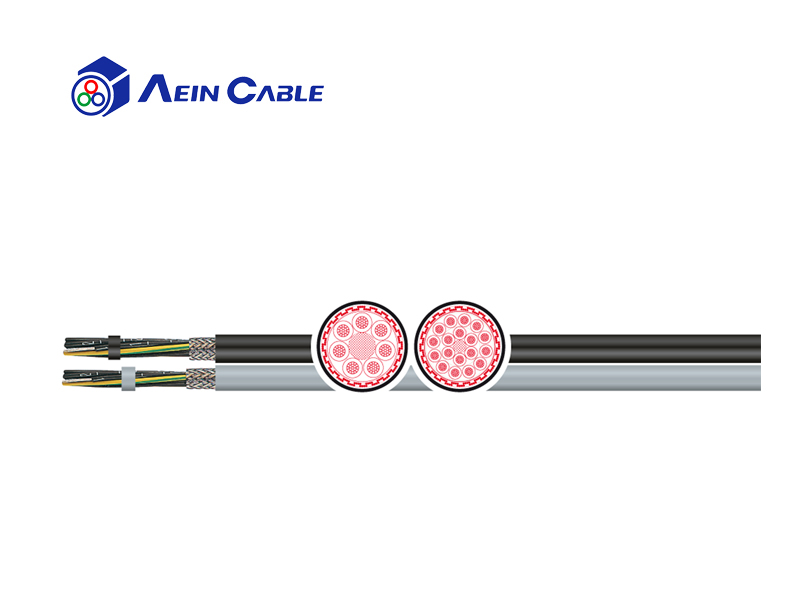

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: PVC, 90 °C acc. to UL 1581
Core identification: Black with white numerals, with (G) or without (X) GNYE
Stranding: Stranded in layers
Shield: Copper braid tinned; coverage approx. 85 %
Outer sheath: PVC, 90° C acc. to UL 1581
Sheath colour: Black, RAL 9005 or grey RAL 7001
Rated voltage: UL/CSA: 1.000 V, VDE: 300/500 V
Testing voltage: 6 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Min. bending radius fixed: 6 x d
Min. bending radius moved: 20 x d
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max: -5 °C / +90 °C
Burning behavior: Self-extinguishing acc. to IEC 60332-1, flame retardant acc. to IEC 60332-3-24 (Cat. C), CSA FT1, UL VW1, CEI 20-22 II and NBN C30-004 Cat. F2
Resistant to oil: Acc. to DIN EN 50290-2-22 resp. VDE 0819-102 TM54
Approvals: UL/CSA: cURus - 90 °C / 1.000 V; VDE production-expertise (VDE-Reg)
