Product introduction
  • 01 Product application
        • Extremely robust cable noted for its good abrasion resistance and notch resistance. Due to its resistance to coolant emulsions, this cable is well suited for use in mechanical engineering, tool making, and systems engineering, and in steel mills and rolling mills in particularly critical areas. Good flexibility means that installation is quick and easy.
        • Suitable for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms,and in open air (fixed installation). The dense screening assures interference-free transmission of all signals and impulses. An ideal interference-free control cable for the above applications
  • 02 Product characteristics UV-radiation, Oxygen, Ozone,Hydrolyse and Microbes Low adhesion, matt surface                                                                                                                                 The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wettting properties of lacquers
  • 03 Technical certification

    oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404

    • UV-resistant acc. to DIN EN ISO 4892-2

    •weather-resistant acc. to DIN EN ISO 4892-2

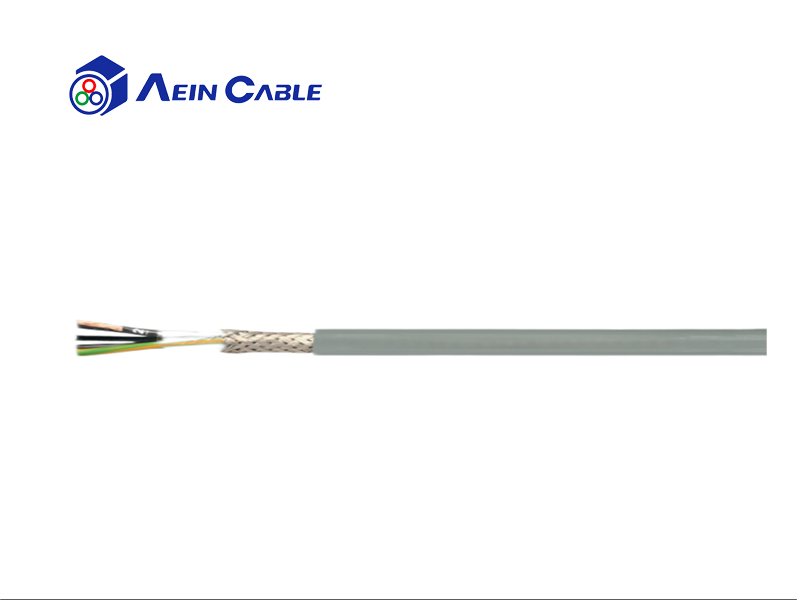

Product structure
Dynamic information

Min. bend radius, flexible

flexible 10 x Outer-Ø

Min. bend radius, fixed

flexible 5 x Outer-Ø

Temperature, flexible

flexible -10°C to +80°C

Temperature, fixed

fixed -40°C to +80°C

Nominal voltage

U0/U 300/500 V

Test voltage core/core

3000 V

Coupling resistancev
max. 250 Ohm/km
Cable structure


Bare copper conductor, to DIN VDE 0295 cl.5, fine wire, BS 6360 cl.5, IEC 60228 cl.5

Conductor insulation
Core insulation of special PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3

Identification Core identification to DIN VDE 0293 black cores with continuous white numbering

Outer jacket Outer sheath from special full polyurethane compound type TMPU to DIN EN 50363-10-2

Screen Tinned copper braided screen, approx. 85% coverage

Cores stranded with optimal lay lengths

Jacket color

grey (RAL 7001) also available in other colours on request

Length marking in meters
