Product introduction
  • 01 Product application
        • For extremely heavy-duty applications
        • Almost unlimited resistance to oil, also with bio-oils
        • Indoor and outdoor applications, UV resistant
        • Unsupported travel distances and up to 400 m and more for gliding applications
        • Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

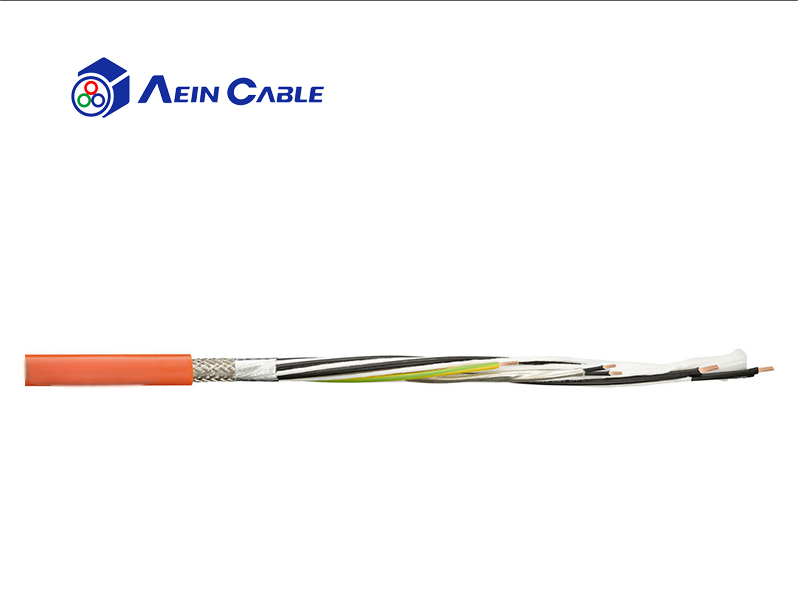

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

6.8 x d

Min. bend radius, e-chain®

3.5 inch (88.4 mm)

Min. bend radius, flexible (factor)

5.0 x d

Min. bend radius, flexible

2.6 inch (65.0 mm)

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

2.0 inch (52.0 mm)

Temperature, e-chain® min.

-31°F (-35 °C)

Temperature, e-chain® max.

212 °F (100 °C)

Temperature, flexible

-31 °F to +212 °F (-35 °C to +100 °C)

Temperature, fixed

-48 °F to +212°F (-55°C to +100°C)

max. unsupported

33 ft/s (10 m/s)

a max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 1312 ft and more(400 m and more)

Cable structure


Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.




Outer jacket

Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®.

Inner jacket TPE mixture suited to requirements in e-chains

Jacket color

Pastel orange (similar to RAL 2003)
