Product introduction
  • 01 Product application
        • Almost unlimited resistance to oil, also with bio-oils
        • Indoor and outdoor applications without direct solar radiation
        • Unsupported and gliding travel distances up to 1,312 ft (400 m) and more
        • Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, indoor cranes, low-temperature applications
        • For heavy duty applications

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

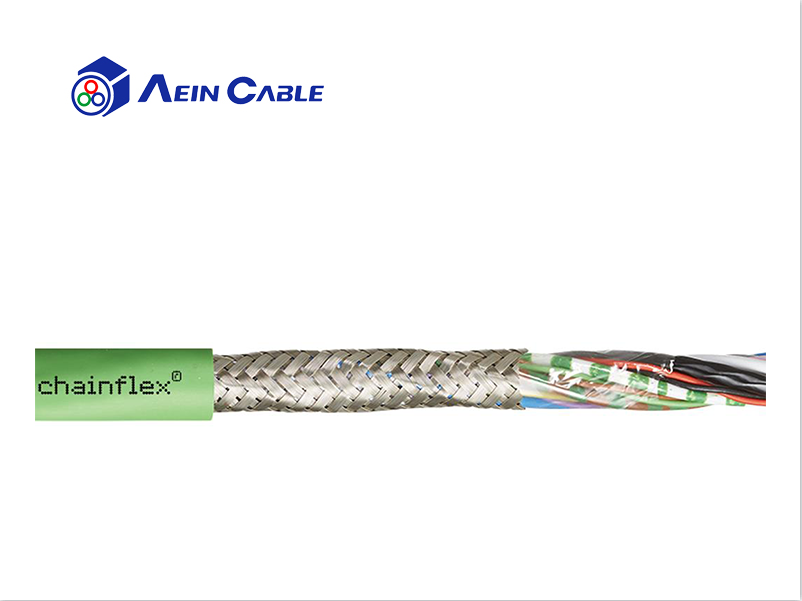

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

1.9 inch (48.8 mm)

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

1.5 inch (39 mm)

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

1.0 inch (26 mm)

Temperature, e-chain® min.

-31 °F (35 °C)

Temperature, e-chain® max.

194 °F (90 °C)

Temperature, flexible

-58 °F to 194 °F (-50 °C to +90 °C)

v max. unsupproted

33 ft/s (10 m/s)

v max. gliding
20 ft/s (6 m/s)

a max., twisted

328.1 ft/s² (100 m/s²)

Length of travel

Travels up to 1312 ft and more (400 m and more)

Cable structure


Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture (According to bus specification)

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.




Outer jacket

Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.

Inner Jacket TPE mixture suited to the requirements in e-chains®

Jacket color

Yellow-green (similar to RAL 6018)
