Product introduction
  • 01 Product application
      Typical application areas:
      • For flexing applications, Class 3
      • Especially for unsupported travels, Class 1
      • Without influence of oil, Class 1
      • No torsion, Class 1
      • Preferably indoor applications
      • Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

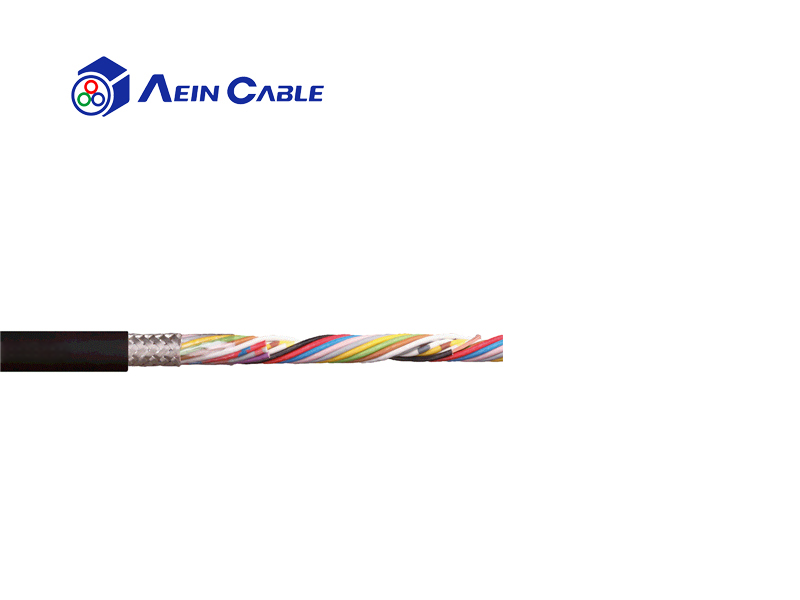

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

12.5 x d

Min. bend radius, e-chain®

2.7 inch (68.8 mm)

Min. bend radius, flexible (factor)

10.0 x d

Min. bend radius, flexible

2.2 inch (55.0 mm)

Min. bend radius, fixed (factor)

7.0 x d

Min. bend radius, fixed

1.5 inch (38.5 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max., unsupported

10 ft/s (3 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)

Cable structure


Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality PVC mixture (following EN 50363-3)

Conductor construction

Cores stranded in optimized pitch

Conductor identification

Colour code according to DIN 47100

Element shield

Bending-resistant braiding made of tinned copper wires.

Inner jacket

PVC mixture suited to the requirements in e-chains®

Overall shield

Braid made of tinned copper wires. Shield about 60% optical.




Outer jacket

Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®.

Outer jacket

Low adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®


Jacket color

Jet black (similar to RAL 9005)
