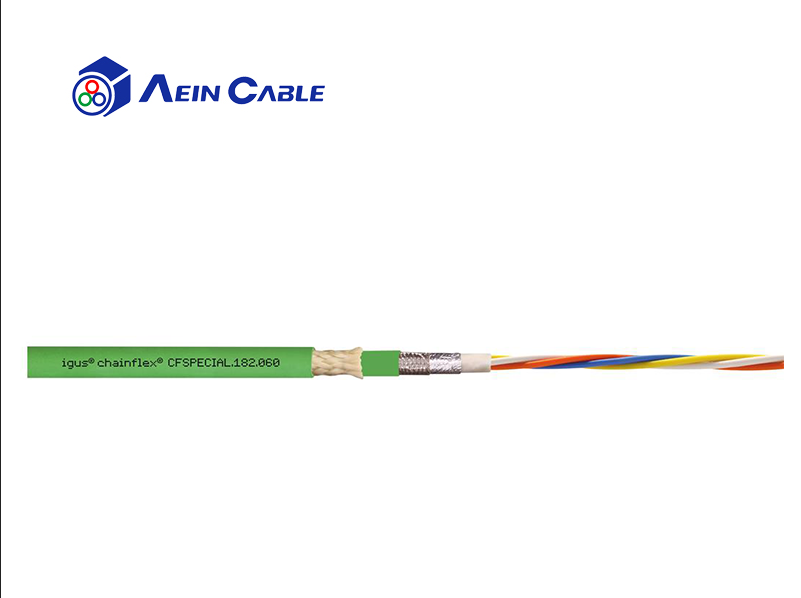

Alternative IGUS PUR Bus Cable for Hanging CFSPECIAL-182 Applications

Alternative IGUS PUR Bus Cable for Hanging CFSPECIAL-182 Applications

Typical application areas

 For increased tensile load

 Almost unlimited resistance to oil

 For hanging applications up to 164 ft (50 m)

 Storage and retrieval units, hanging control elements, lifts


 Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas


inquiry
  • Product details
Product introduction
  • 01 Product application

        • For increased tensile load
        • Almost unlimited resistance to oil
        • For hanging applications up to 164 ft (50 m)
        • Storage and retrieval units, hanging control elements, lifts


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    •Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.3 inch (85.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

2.7 inch (68.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.7 inch (42.5 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40°F to +176°F (-20°C to +80°C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max. unsupported

33 ft/s (10 m/s)

a max.

328.1 ft/s² (100 m/s²)

Length of travel

For hanging applications up to 164 ft (50 m)

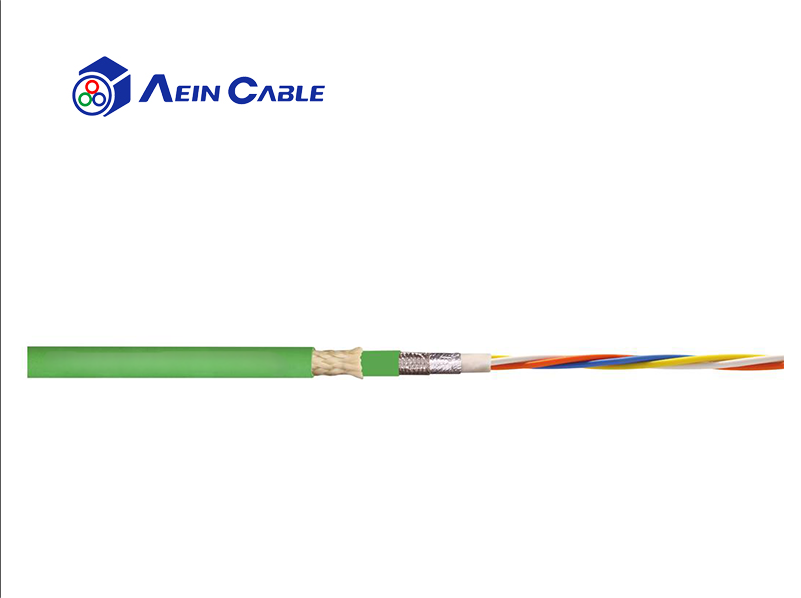

Cable structure

Conductor

Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)


Conductor insulation
 According to bus specification

Overall shield Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.


Unshielded

No

v
 Armour
 High tensile-strength aramide braid embedded in the outer jacket.

Outer jacket Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)

Inner jacket
 1st Inner Jacket: TPE mixture adapted to suit the requirements in e-chains®
2nd Inner Jacket: PUR mixture adapted to suit the requirements in e-chains®


Jacket color

Yellow-green (similar to RAL 6018)





Keywords: American Standard UL certified cable American standard cable
