Spot stock

Min. bend radius, e-chain® (factor)

15.0 x d

Min. bend radius, e-chain®

5.3 inch (135.0 mm)

Min. bend radius, flexible (factor)

12.0 x d

Min. bend radius, flexible

4.3 inch (108.0 mm)

Min. bend radius, fixed (factor)

8.0 x d

Min. bend radius, fixed

2.8 inch (72.0 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max., unsupported

10 ft/s (3 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)

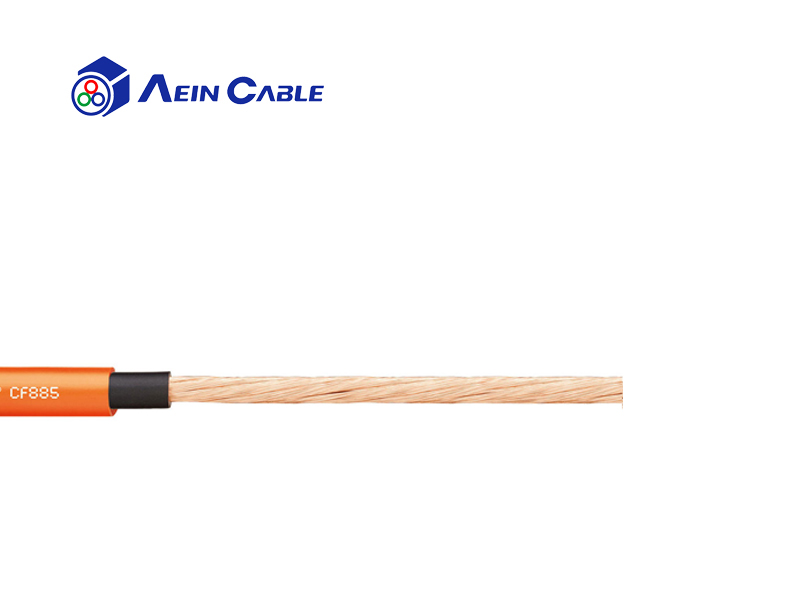

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Conductor construction

Cores stranded in optimized pitch

Conductor identification

Cores black with white numerals, one core green-yellow.
1.Core: U / L1 / C / L+
2.Core: V / L2
3.Core: W / L3 / D / L-

Unshielded

Yes

Outer jacket

Low adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®

Jacket color

Pastel orange (similar to RAL 2003)
