Product introduction
  • 01 Product application
    Typical application areas
    • For heavy duty applications with torsion movements
    • Almost unlimited resistance to oil
    • Indoor and outdoor applications, UV resistant
    • Especially for robots and 3D movements, handling, lead screw drives
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

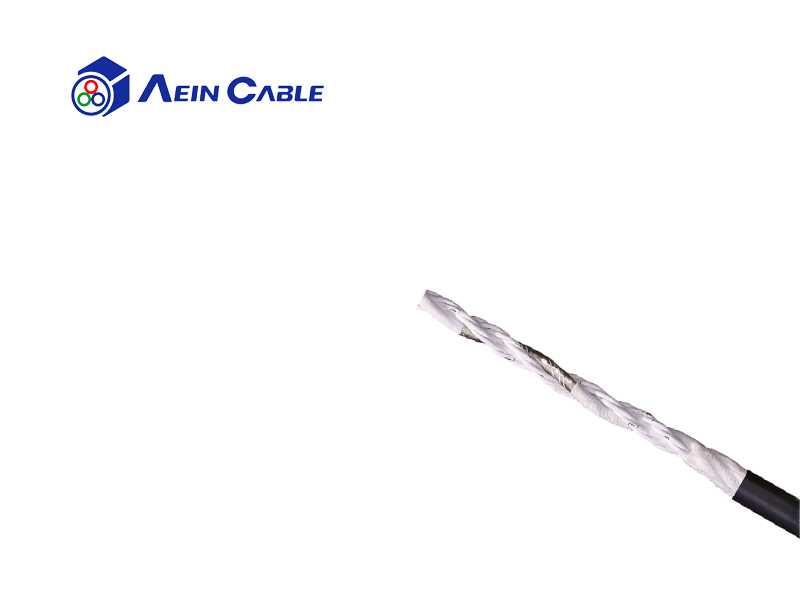

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.9 inch (100.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

3.1 inch (80.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

2.0 inch (50.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max. twisted

180 °/m

a max., twisted

60 °/s²

Length of travel

Robots and motions in 3D area, Class 1


± 180°, with 1 m cable length

Cable structure


Stranded conductor in especially bending-resistant version consisting of tinned copper wires (following DIN EN 60228).

Conductor insulation

Mechanically high-quality TPE mixture

Conductor identification

According to colour code

Element shield

Extremely torsion-resistant tinned braided copper shield. Coverage approx. 85 % optical




Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (following EN50363-10-2).


Jacket color

Steel blue (similar to RAL 5011)
