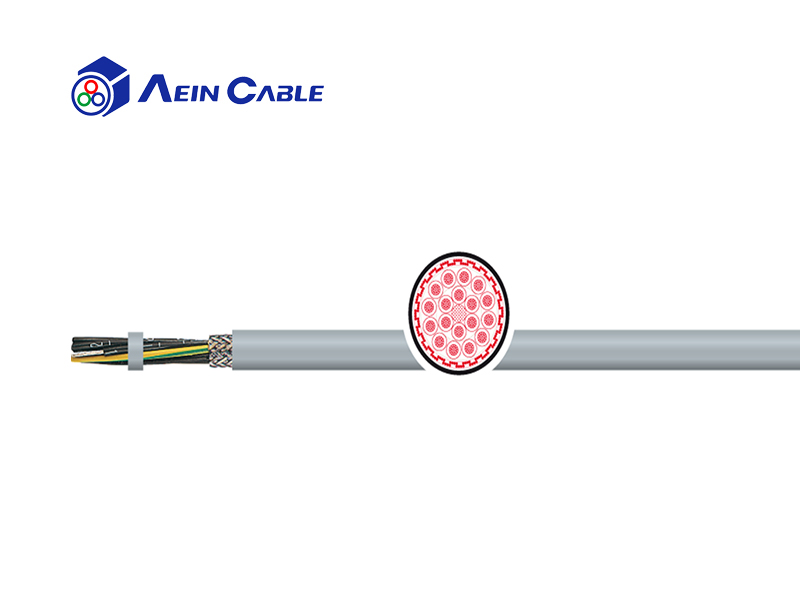

Conductor material:
|
Bare copper strand
|
Conductor class:
|
Acc. to IEC 60228 cl. 5
|
Core insulation:
|
PVC
|
Core identification:
|
Acc. to DIN VDE 0293 black cores with white numerals, G: with GNYE
|
Stranding:
|
Stranded in layers
|
Shield3:
|
Copper braid tinned, coverage approx. 85 %
|
Outer sheath:
|
PVC
|
Sheath colour:
|
Grey, RAL 7001
|
Rated voltage:
|
Uo/U: 300/500 V
|
Testing voltage:
|
Core/core: 4 kV core/shield: 2 kV
|
Conductor resistance:
|
Acc. to IEC 60228 cl. 5
|
Insulation resistance:
|
Min. 20 MΩ x km
|
Current-carrying-capacity:
|
Acc. to DIN VDE, see technical Guidelines
|
Capacity:
|
Core/core ca. 120 nF/km; core/shield ca. 155 nF/km
|
Min. bending radius fixed:
|
6 x d
|
Min. bending radius moved:
|
15 x d
|
Operat. temp. fixed min/max:
|
-40 °C / +80 °C
|
Operat. temp. moved min/max:
|
-15 °C / +70 °C
|
Temp. at conductor:
|
+70 °C in operation; +150 °C in case of short-circuit
|
Burning behavior:
|
Self-extinguishing & flame-retardant acc.to IEC 60332-1
|
Resistant to oil:
|
Acc. to EN 50290-2-22 (TM54)
|
