Product introduction
  • 01 Product application
    Typical application areas
    • for medium load requirements
    • suitable for indoor/outdoor applications applications
    • especially for freely suspended travel distances and for low-duty gliding applications up to 30 ft (9m)
    • wood/stone processing, packaging industry, supply system, handling, adjusting equipment, machine tools
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

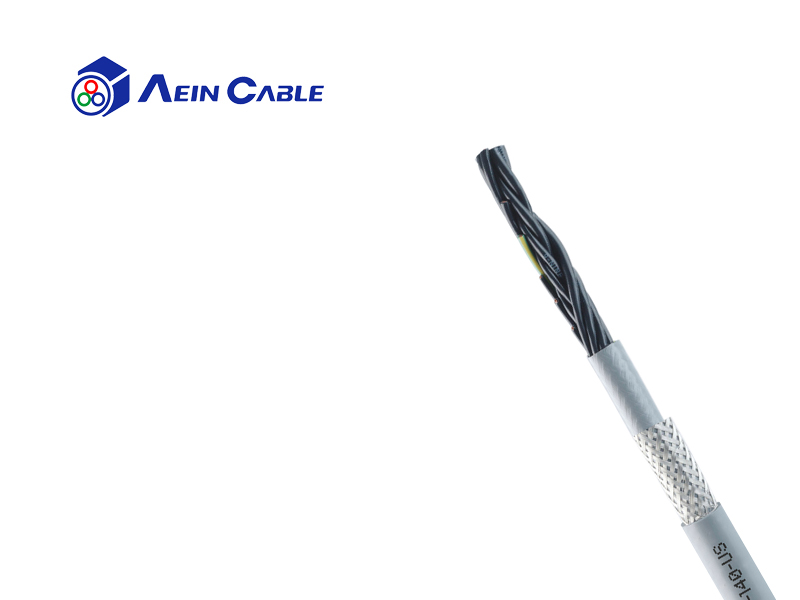

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.5 inch (88.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

2.8 inch (70.4 mm)

Min. bend radius, fixed (factor)

7.5 x d

Min. bend radius, fixed

2.6 inch (66.0 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

+23°F to +176°F (-5°C to +80°C)

Temperature, fixed

-4°F to +194°F (-20°C to +90°C)

v max., unsupported

10 ft/s (3 m/s)

v max. gliding

7 ft/s (2 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)

Cable structure


Finely stranded bundled bare copper wires. Designed in accordance with ASTM B174-95

Conductor insulation

Mechanically high-quality, PVC/Nylon.

Conductor construction

Conductors concentrically layered with short pitch.

Conductor identification

Cores black with white numerals, one core green-yellow

Inner jacket

PVC mixture suited to the requirements in e-chains®

Overall shield

Tinned copper, 65% optical coverage




Outer jacket

Oil-resistant UV-resistant PVC, low-adhesion blend, adapted to the requirements of the Energy Chain®. Silicon-free in compliance with PV 3.10.7 - status 1992


Jacket color

Silver grey (similar to RAL 7001)
