Product introduction

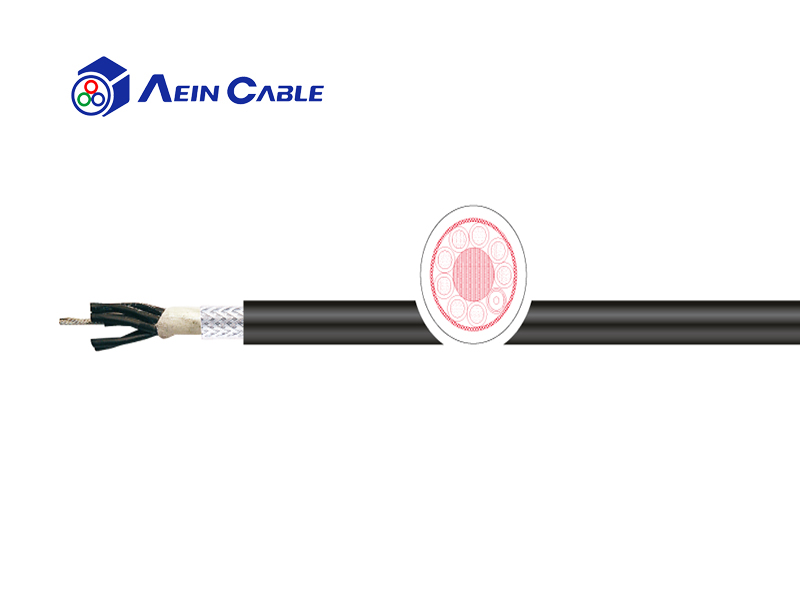

  • 01 Product application high-flexible lift control cable with steel supporting element for medium mechanical stess. Suitable for dry and humid rooms.
  • 02 Product characteristicswithout sustain braid
    for emergency phone facilitiesYSSTCY: shielded, EMC free from lacquer damaging substances and silicone (during production)
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5
Core insulation: PVC
Core identification: Coloured acc. to DIN 47100
Stranding: 2 cores stranded to 1 pair; pairs stranded in layers
Shield3: Copper braid tinned; coverage ca. 70%
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: 100 V
Testing voltage: C/c 1.500 V; c/s 1.000 V
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 18 x d
Operat. temp. fixed min/max: -25 °C / +70 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Suspension height: Max. 50 m
Standard: Similar to DIN VDE 0250
