Spot stock

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

2.8 inch (71.3 mm)

Min. bend radius, flexible (factor)

6.0 x d

Min. bend radius, flexible

2.2 inch (57.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

1.5 inch (38.0 mm)

Temperature, e-chain® min.

-31 °F (-35 °C)

Temperature, e-chain® max.

194 °F (90 °C)

Temperature, flexible

-58 °F to 194 °F (-50 °C to +90 °C)

Temperature, fixed

-67 °F to 194 °F (-55 °C to +90 °C) (following DIN EN 50305)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

20 ft/s (6 m/s)

a. max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 1312 ft and more (400 m and more)

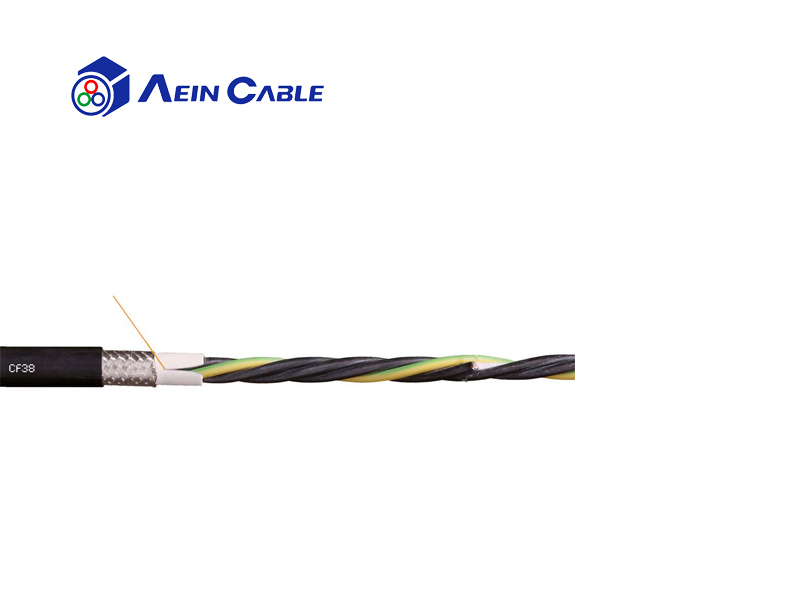

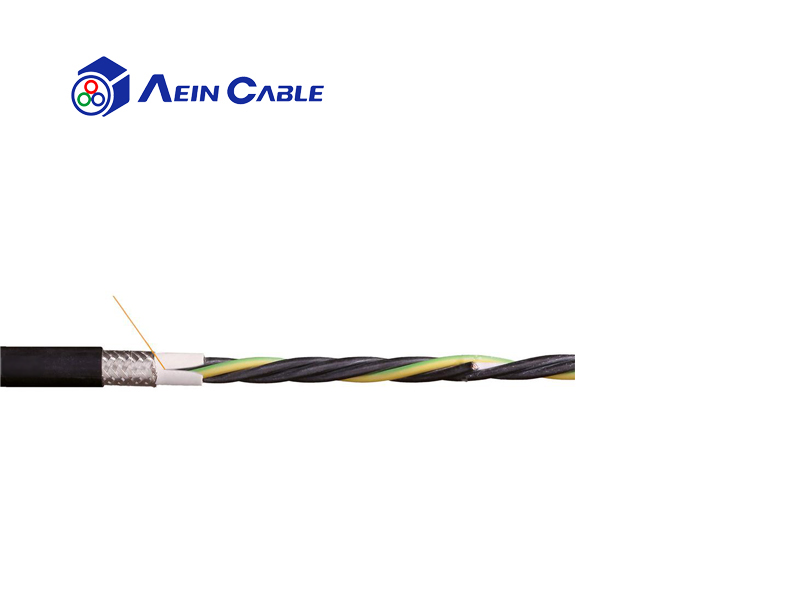

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Conductor construction

Cores stranded in short pitch length over a centre element for high tensile stresses

Conductor identification

Cores black with white numerals, one core green-yellow.
1.Core: U / L1 / C / L+
2.Core: V / L2
3.Core: W / L3 / D / L-
4. Core: 4 / N

Inner jacket

TPE mixture suited to the requirements in e-chains®

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Unshielded

No

Outer jacket

Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.

Jacket color

Jet black (similar to RAL 9005)

CFRIP®

Quickly stripping: CFRIP® tear strip at inner jacket
