Product introduction
  • 01 Product application for connecting of machinery such as battery charger, connecting cable between charger and accumulators of battery operating vehicles. Suitable in dry, humid and wet rooms.
  • 02 Product characteristicsfree from lacquer damaging substances and silicone (during production)
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

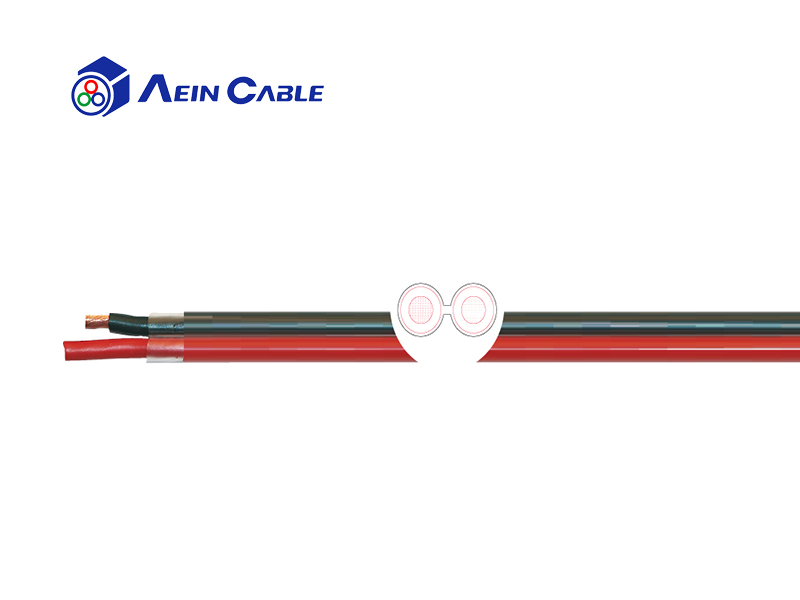

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
Core insulation: Thermoplast
Core identification: Red, black
Stranding: Cores parallel side by side
Outer sheath: PVC
Sheath colour: Transparent
Rated voltage: 80 V
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 10 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -25 °C / +70 °C
Operat. temp. moved min/max: -25 °C / +70 °C
Temp. at conductor: +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
