Product introduction

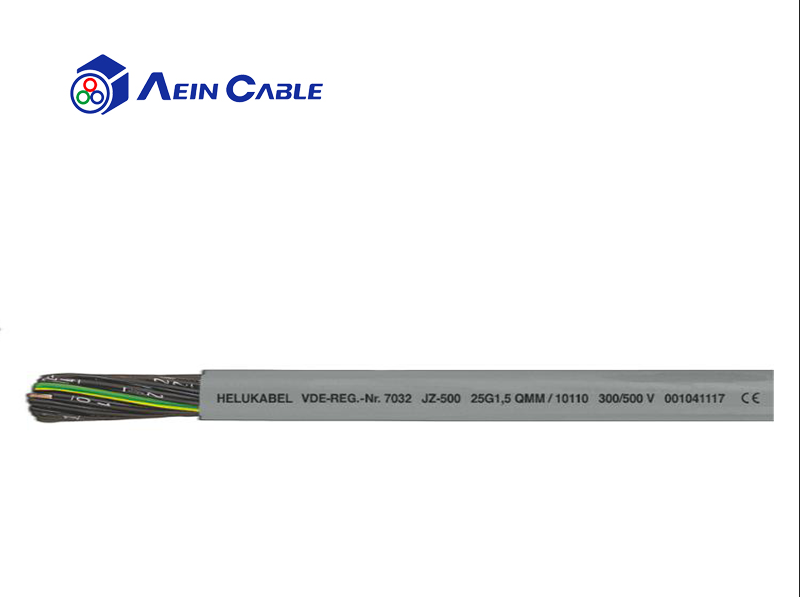

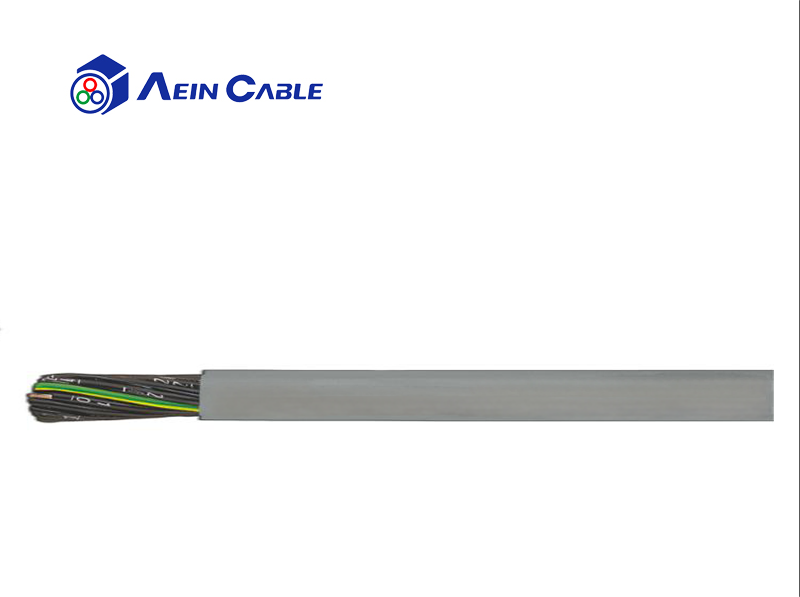

  • 01 Product application These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as connecting and control cables in tool machines, conveyor belts, assembly lines, plant engineering, AC technology, steel production and other manufacturing environments. Selected PVC compounds guarantee good flexibility as well as an economic and fast installation.

    CE = Product conforms with Low-Voltage Directive 2014/35/EU.
  • 02 Product characteristics • largely resistant to: oil, for details, see "Technical Information"                                                                                      • conditionally torsional                                                                                                                                                     • conditionally suitable for drag chains                                                                                                                           • the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • 03 Technical certification

  • Flame retardant acc. toDIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2

Product structure

Conductor material: Copper wire bare
Conductor class: Finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Core insulation: PVC, compound type Z 7225
Core identification: Acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
Stranding: Cores stranded in layers with optimal lay lengths
Outer sheath: PVC
Sheath colour: grey (RAL 7001)
Rated voltage: AC U0/U 300/500 V
Testing voltage: 4 kV
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7.5 x d
Operat. temp. fixed min/max: -40°C to +80°C
Operat. temp. moved min/max: -15°C to +80°C
Burning behavior: Self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
Suspension height: See table
Standard: Similar to DIN VDE 0295
