Product introduction
  • 01 Product application as shielded, single core, double sheathed motor connection cable for highly flexible applications (e.g. cable drag chains, gantry robots, pick&place units, conveyor systems, machine tools, automatic conveyor systems) manufacturing systems, test systems, etc.) for normal electrical and mechanical requirements. Suitable for use in dry, humid and wet environments as well as outdoors.
  • 02 Product characteristicsUL/CSA approval low adhesion, silicone-freeUV-resistant (version with black outer jacket) oil resistant according to EN 60811-404 (mineral oil only), EN 50290-2-22 TM54largely resistant to greases, coolants and lubricants
    recommended for EMC-compatible applications
    due to 1.000 V UL/CSA approval parallel laying with other 1.000 V cables is permitted.
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

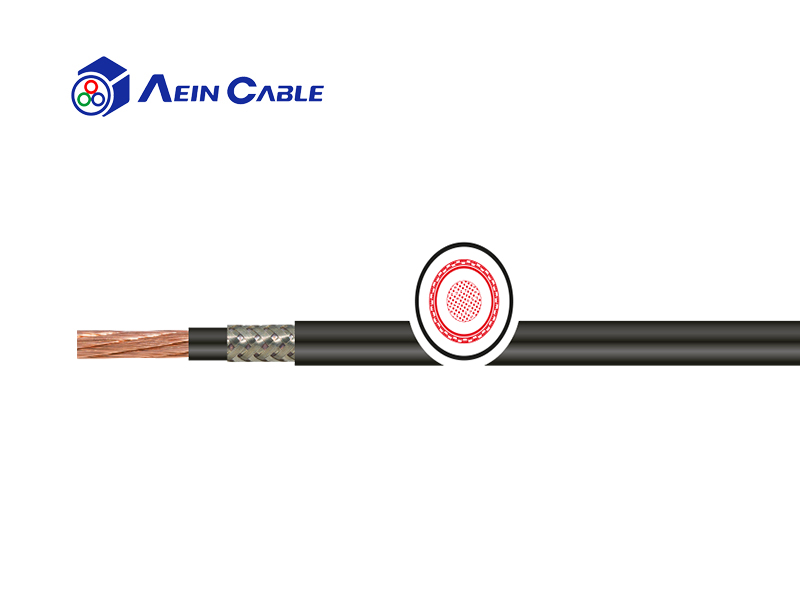

Product structure
Conductor material: Bare copper strand
Conductor class: Super fine wires acc. to IEC 60228 cl. 6
Core insulation: PVC
Core identification: Black
Shield: Copper braid tinned, opt. coverage approx. 85 %
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: IEC: 600/1.000 V, UL: 1.000 V
Testing voltage: 4 kV
Conductor resistance: At +20 °C acc. to IEC 60228 cl. 6
Min. bending radius fixed: 5 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max: -5 °C / +90 °C
Burning behavior: Self-extinguishing & flame-retardant IEC 60332-1, UL: VW-1, CSA: FT-1
Resistant to oil: Acc. to ISO 6722, EN 60811-404 (only mineral oil), EN 50290-2-22 TM54
Approvals: UL/CSA - cURus 1.000 V, 90°C
