Product introduction
  • 01 Product application Power cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoor-and outdoor-use, cable channels and in water when increased mechanical protection resp. contact protection in case of failure is required.
  • 02 Product characteristicsfree from lacquer damaging substances and silicone (during production) UV resistant 0,6/1 kV operating voltage 4 kV testing voltage
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

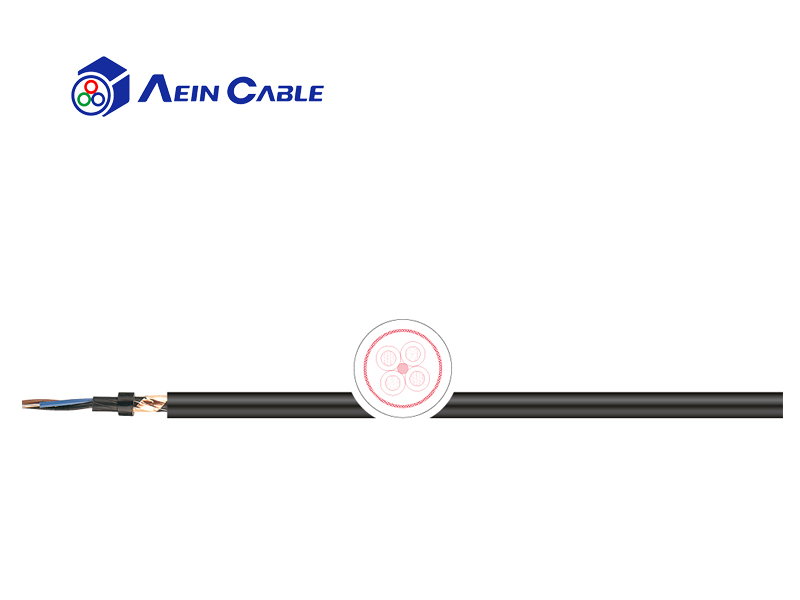

Product structure
Conductor material: Bare copper conductor
Conductor class: Acc. to DIN VDE 0295 class 1 resp. IEC 60228 cl. 1
Core insulation: PVC
Core identification: Single core black; multi core acc. to VDE 0207 part 4
Stranding: Multi core stranded in layers
Inner sheath material: Filler sheath
Shield: Concentric conductor of blank round copper wires
Outer sheath: PVC
Sheath colour: Black
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 4 kV
Conductor resistance: At +20 °C acc. to DIN VDE 0295 class 1 resp. IEC 60228 cl. 1
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: Single core: 15 x d ; multi core: 12 x d
Operat. temp. fixed min/max: -40 °C / +70 °C
Operat. temp. moved min/max: - 5 °C / +50 °C
Temp. at conductor: + 70 °C in operation; +160 °C in case of short-circuit
Burning behavior: Acc. to VDE 0472-804-B and IEC 60332-1
Standard: Acc. to DIN VDE 0276-603 and IEC 60502
