Product introduction
  • 01 Product application For flexible use in applications with high electrical requirements for controlling of various drive components on DRIVE interfaces and digital signals, with a transfer rate of up to 100Mbit/s. Suitable for use in dry and humid rooms. Outdoor use only with UV-protecftion.
  • 02 Product characteristicsflame retardant oil resistant acc. to IEC 60811-2-1 free from lacquer damaging substances and silicone (during production) HF-characteristics Cat.5e acc. to IEC 61156-6 conform to DESINA due to 300V UL/CSA approval parallel laying with other 300V cables is permitted

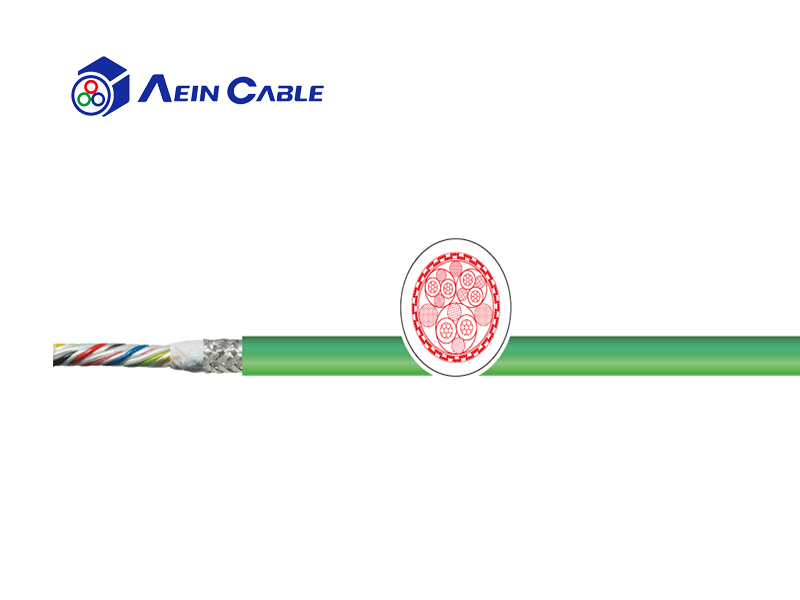

    structure: picture exemplary
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper (AWG24), tinned copper (AWG22)
Conductor class: 7-wires (AWG24), 19-wires (AWG22)
Core insulation: AWG24 foamed Polyolefine, AWG22 Polyolefine
Core identification: Pairs AWG24 GN/YE, PK/BU pair AWG22 RD/BK
Stranding: Cores twisted to pairs
Overall stranding: 3 elements stranded with fillers
Shield3: Alu-clad PET foil, metalside with contact to braid cover.100%, tinned copper braid, opt.cover.≥85%
Outer sheath: PVC
Sheath colour: Green, RAL 6018
Outer diameter: Ca. 6,95 mm
Rated voltage: Max. 300 V
Testing voltage: 500 V
Conductor resistance: AWG24 max. 90 Ω/km , AWG22 max. 55 Ω/km
Insulation resistance: At 20 °C ≥ 1 GΩ/km
Capacity: Data pairs: nom. 50 nF/km at 800 Hz
Characteristic impedance: 100 ± 15 Ω from 1 to 100 MHz
Transfer rate: 100 Mbit/s
Min. bending radius fixed: 35,0 mm
Min. bending radius moved: 125,0 mm
Operat. temp. fixed min/max: - 20 °C / +80 °C
Operat. temp. moved min/max: - 0 °C / +60 °C
Burning behavior: Acc. to IEC60332-1-2, UL VW-1 resp. CSA FT1
Approvals: UL/CSA - cURus 300 V, 80°C, up from production date Jan. 2016
Copper weight: 41,0 kg/km
Weight: Ca. 68,0 kg/km
