Product introduction
  • 01 Product application
        • For heaviest duty applications with 5-7.5 xd
        • Maximum EMC protection, with high transmission qualities
        • Almost unlimited resistance to oil
        • Indoor and outdoor applications
        • Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications (horizontal + vertical)
        • Offshore, ships, storage and retrieval equipment, machining units/packaging machines, quick handling, semiconductor insertion, refrigeration sector

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

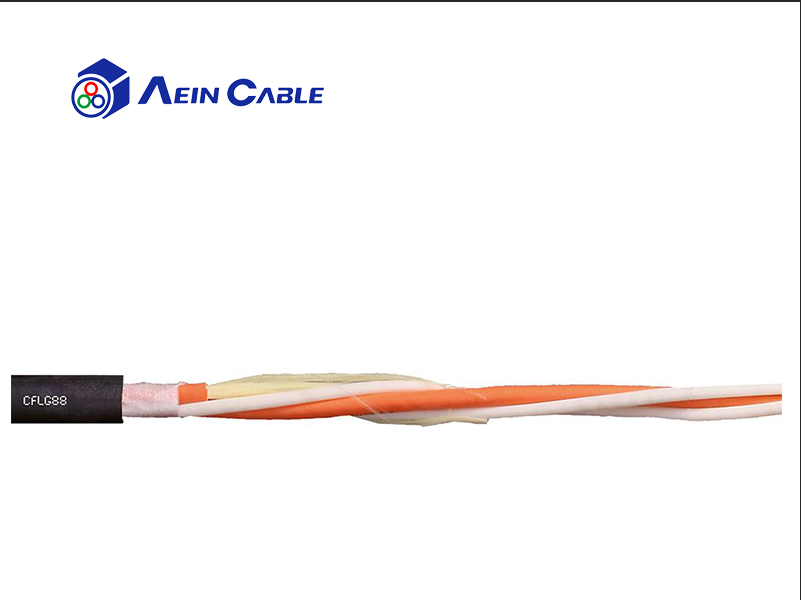

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

4.0 x d

Min. bend radius, e-chain®

1.7 inch (42.5 mm)

Min. bend radius, flexible (factor)

3.0 x d

Min. bend radius, flexible

1.3 inch (34.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.0 inch (25.5 mm)

Temperature, e-chain® min.


Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20°C to +80°C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

max. unsupported

33 ft/s (10 m/s)

a max.

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 328 ft (100 m)

Cable structure


50/125 μm, 62.5/125 μm special fixed wire elements with aramide strain relief.




Outer jacket Low-adhesion mixture on the basis of PUR, adapted to suit the requirements in energy chains®

Over shield Extremely bending-resistant aramid braid for torsion protection.

Jacket color

Jet black (similar to RAL 9005)
