Product introduction
  • 01 Product application
      •  CF14US-02-04-02-UV is good for direct sunlight
      •  For extremely heavy duty applications
      •  Suitable for indoor/outdoor applications without direct sunlight
      •  Especially for unsupported and gliding travel up to 164 ft (50m)
        • For application lengths > 164 ft (50m) use igus® P/N CFBUS-045
        • Storage and retrieval units for high-bay warehouses, machine tools, quick handling,cleanroom, semiconductor insertion, indoor cranes, low temperature applications

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

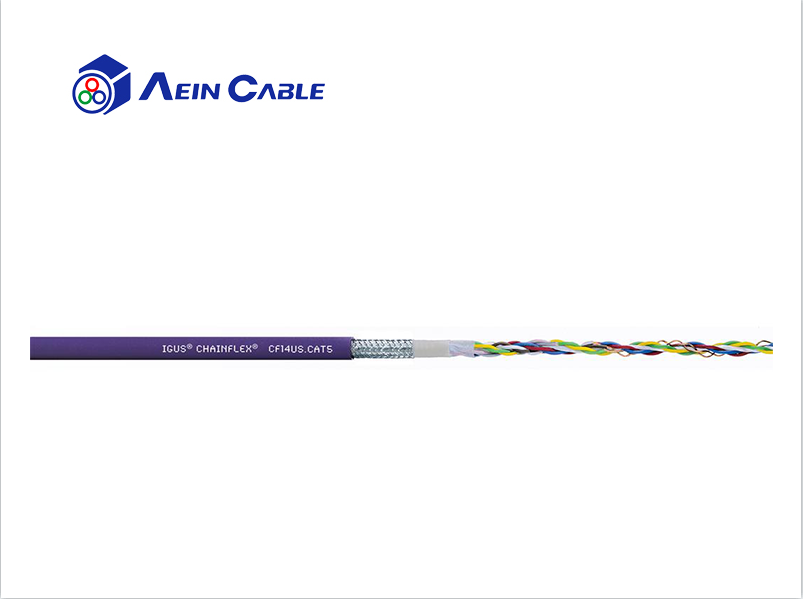

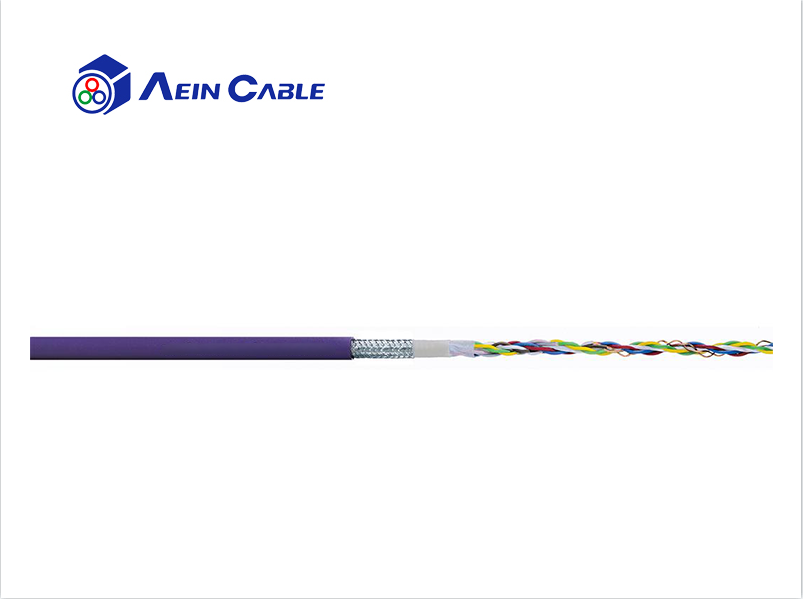

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

12.5 x d

Min. bend radius, e-chain®

3.7 inch (95 mm)

Min. bend radius, flexible (factor)

10.0 x d

Min. bend radius, flexible

3 inch (76 mm)

Min. bend radius, fixed (factor)

7.5 x d

Min. bend radius, fixed

2.2 inch (57 mm)

Temperature, e-chain® min.

-4 °F (-20 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

-40 °F to +158 °F (-40 °C to +70 °C) (following DIN EN 60811-504)

Temperature, fixed

-58 °F to 158 °F (-45 °C to 70 °C) (following DIN EN 50305)

a max., twisted

328.1 ft/s² (100 m/s²)

Length of travel

Travels up to 164 ft (50 m) Travels up to 164 ft (50 m)

Cable structure


Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Foam polyethylene

Overall shield

Tinned copper, 90% optical coverage




Outer jacket

Low adhesion PUR blend adapted to the requirements of the energy chain

Inner jacket TPE mixture suited to the requirements in e-chains®

Jacket color
