Product introduction

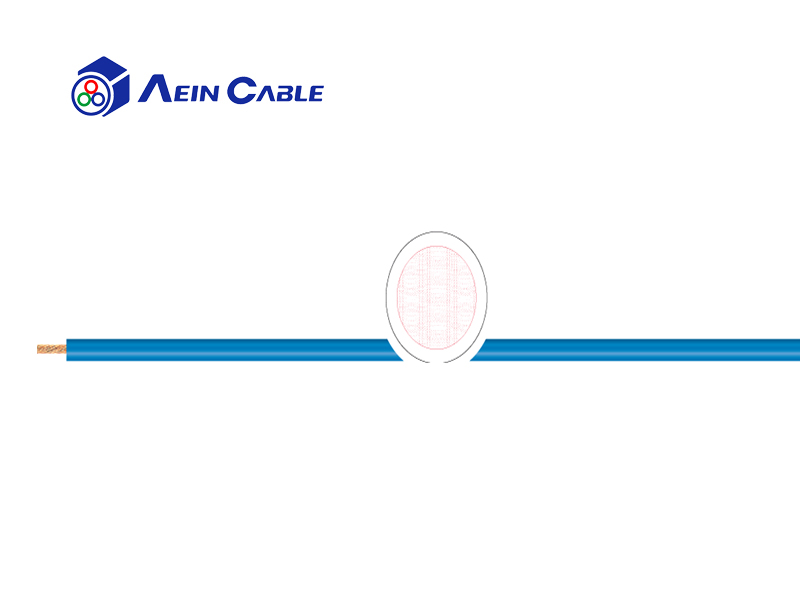

  • 01 Product application UL/CSA approved PVC switching cable for internal wiring of switch boards, medical devices, electronic modules and control systems and for installation in conduits and pipes in machinery and as connecting wire for transformers and motors.
  • 02 Product characteristicslargely resistant to acids, bases and specified types of oil free from lacquer damaging substances and silicone (during production) excellent suitable for cut-and-clamp technology by 7- or 19-wire conductorUL/CSA approved single core
    self-extinguishing and flame-retardant
    no direct laying on pallets, in channels or trays (exceptional as potential compensation) all usual standard colours available
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Copper strand tinned
Conductor class: Acc. to AWG-No., AWG wires and stranded conductors in technical Guidelines
Core insulation: PVC
Core identification: Different colours
Rated voltage: UL Style 1007/1569: 300 V; UL-Style 1015,1284: 600 V
Testing voltage: 3 kV
Conductor resistance: Acc. to IEC 60228
Current-carrying-capacity: Acc to. DIN VDE, see Technical Guidelines
Min. bending radius fixed: 10 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -40 °C / +105 °C
Burning behavior: Self-extinguishing and flame-retardant; flammability test VW-1 UL standard 83
Standard: UL: AWM style 1007/1569/1015
Approvals: UL/CSA: 105 °C - 300 V / 105 °C - 600 V
