Product introduction

01 Product application
for permanent use in water to connect electrical equipment such as submerged pump motors. Suitable for drinking and industrial water and for medium mechanical requirements.
02 Product characteristics•TML T-RD: rated voltage up to 0.6/1 kV when protected and fixed laying in pipes of well systems. •free from lacquer damaging substances and silicone (during production)•suitable for permanent use in drinking water up to max. 400 m diving depth
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation:	TML T-RD: based on EPR; TML T-F: based on EPR or VPE
Core identification:	Acc. to VDE 0293-308 coloured with or without GNYE

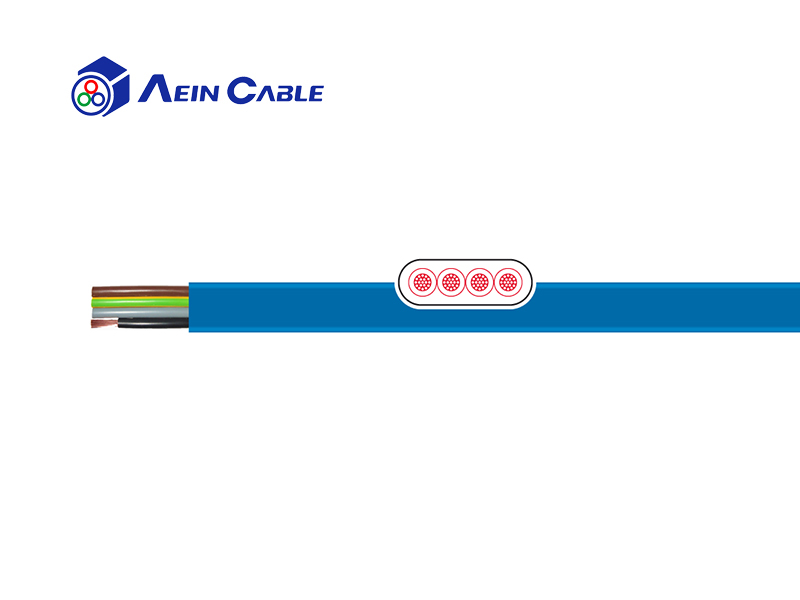

Stranding:	TML T-RD: cores stranded in layers; TML T-F: cores parallel side by side
Outer sheath:	Based on EPR
Sheath colour:	Blue
Rated voltage:	Uo/U: 450/750 V
Testing voltage:	2,5 kV
Current-carrying-capacity:	Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed:	4 x d
Min. bending radius moved:	5 x d
Operat. temp. fixed min/max:	-40 °C / +60 °C
Operat. temp. moved min/max:	-25 °C / +60 °C
Temp. at conductor:	+90 °C
