Product introduction
  • 01 Product application
      • For maximum voltage and outputs
      • Almost unlimited resistance to oil
      • Indoor and outdoor applications, UV resistant
      • Unsupported and gliding travel distances up to 400 m and more
      • 12Crane applications, conveyer technology

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

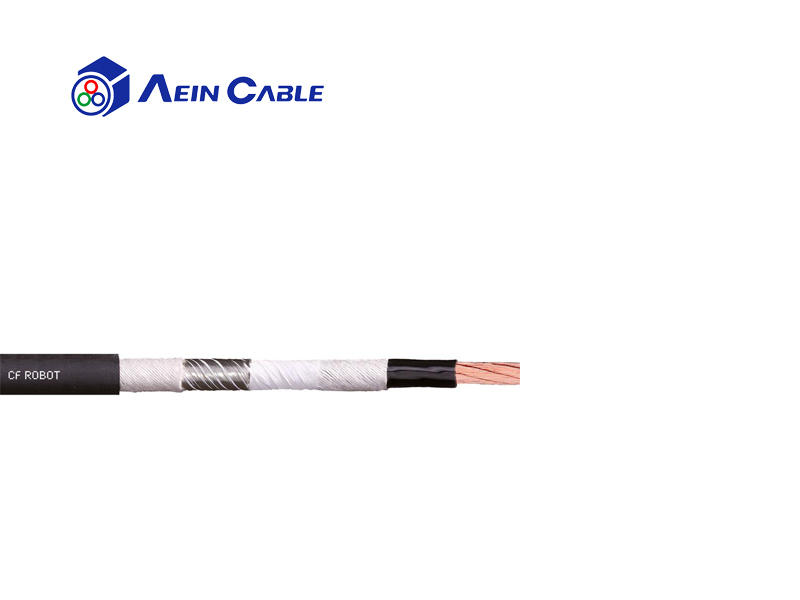

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

9.6 inch (245.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

7.7 inch (196.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

4.8 inch (122.5 mm)

Temperature, e-chain® min.

-4 °F (-20 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-13 °F to +176 °F (-13 °C bis +80 °C)

Temperature, fixed

-58°F to + 212°F (-50°C to +100°C)

v max. twisted

33 ft/s (10 m/s)

a max., twisted

22 ft/s (6 m/s)

Length of travel

Robots and motions in 3D area, Class 1


± 180°, with 1 m cable length

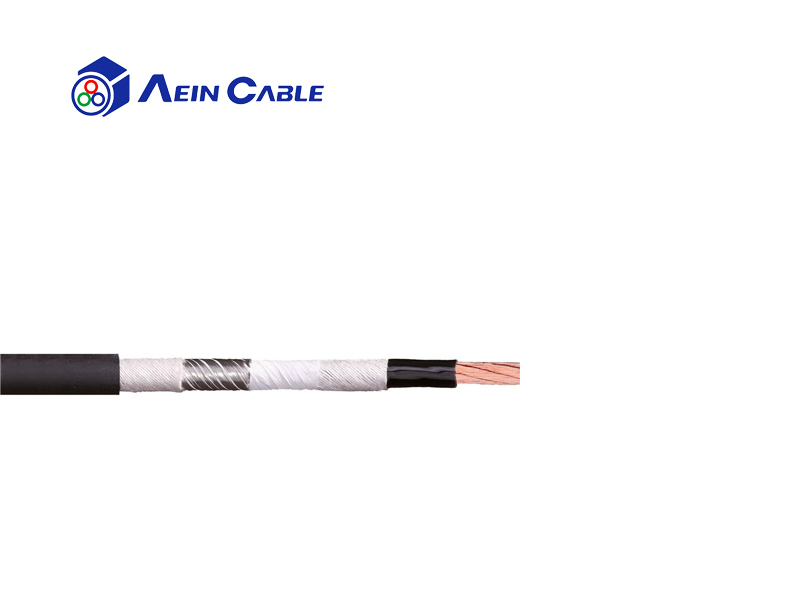

Cable structure


Highly flexible cable consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Inner and outer semiconducting layer made of condutive rubber. Insulating sheath made of highly-quality, heat-resistant and ozoneproof ethylene propylene rubber (EPR).

Overall shield

Tinned copper, 65% optical coverage.




Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).


Jacket color
