Product introduction
  • 01 Product application
    • Typical application areas

       For heavy duty applications

       Almost unlimited resistance to oil

       Indoor and outdoor applications with average solar radiation

       Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications

       Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

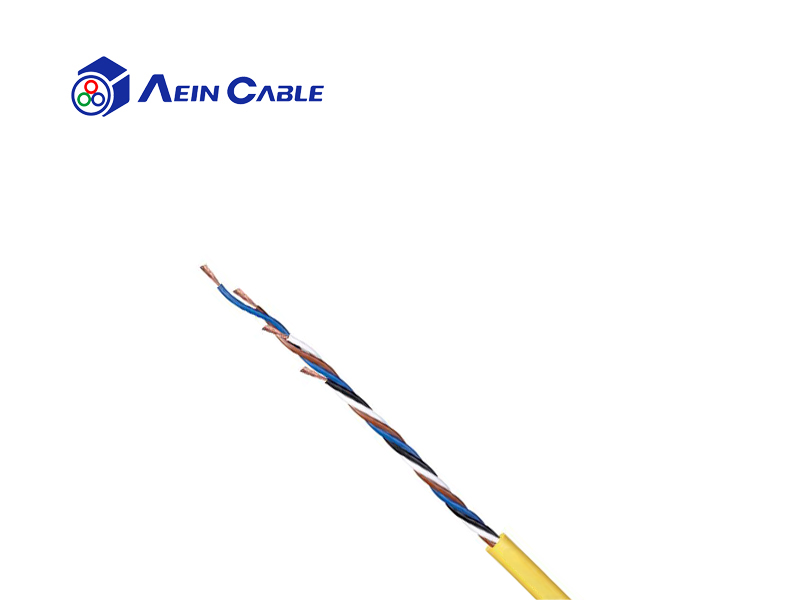

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

6.8 x d

Min. bend radius, e-chain®

1.3 inch (34.0 mm)

Min. bend radius, flexible (factor)

5.0 x d

Min. bend radius, flexible

1.0 inch (25.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

0.8 inch (20.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

16 ft/s (5 m/s)

v max. twisted

180 °/m

a. max.

262.5 ft/s² (80 m/s²)

a max., twisted

60 °/s²

Length of travel

Travels up to 328 ft (100 m)


± 180°, with 1 m cable length

Cable structure


Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Conductors stranded in short pitch in one position

Conductor identification

Colour code according to DIN 47100

Inner jacket

TPE mixture suited to the requirements in e-chains®




Outer jacket

Low-adhesion mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).


Jacket color

Window grey (similar to RAL 7040)
