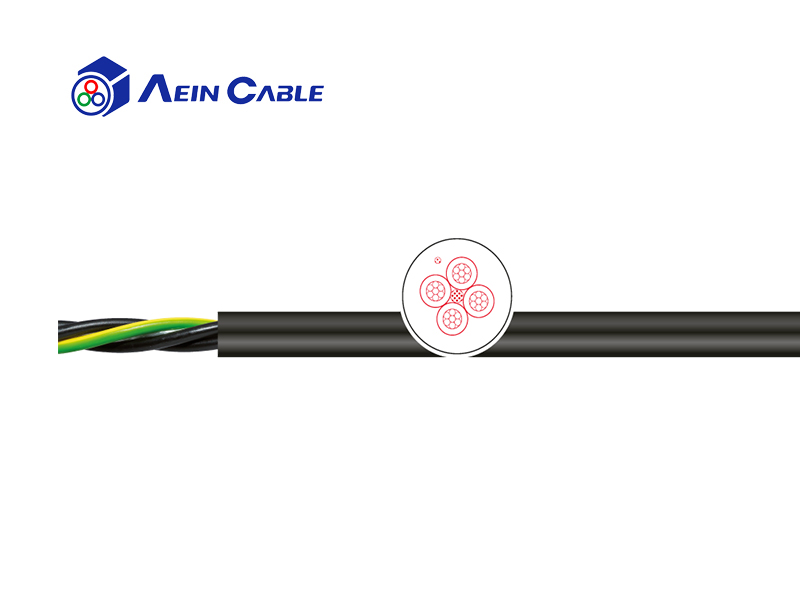

Alternative TKD Allround 7310 SK-PVC UL/CSA Cable

Alternative TKD Allround 7310 SK-PVC UL/CSA Cable

flexible power cable for high electrical and mechanical requirements in drag chain and motion drive systems in machine and plant engineering in the field of crane and conveyor technology in dry and humid rooms also outdoor.

inquiry
  • Product details
Product introduction
  • 01 Product application flexible power cable for high electrical and mechanical requirements in drag chain and motion drive systems in machine and plant engineering in the field of crane and conveyor technology in dry and humid rooms also outdoor.
  • 02 Product characteristics•UL/CSA approved •flame-retardant•resistant to oil acc. to DIN EN 60811-404 (only mineral oil)
    •silicone-free    • UV-resistant •low adhesion• NEW: with Ripcord, for faster and core protected dismantling up from production date september 2016
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand
Conductor class: Super fine wires acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation: TPE
Core identification: BK with WH numerals, one core GNYE 1.core: U / L1 / C / L+ *** 2.core: V / L2 3.core: W / L3 / D / L- *** 4.core: 4 / N
Stranding: Cores stranded in opt. lay length around tensile strength center
Outer sheath: PVC, with Rip cord
Sheath colour: Black (RAL 9005)
Rated voltage: 600/1.000 V
Testing voltage: 4.000 V
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d
Operat. temp. fixed min/max: -20 °C / +70 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Burning behavior: Acc. to IEC 60332-1, cable flame test, FT1
Approvals: UL/CSA - cURus 80 °C, 1.000 V
Speed: Self-supporting: max. 10 m/s, gliding: max. 5 m/s
Acceleration: Max. 80 m/s²

Keywords: alternative tkd control cable
