Product introduction

01 Product application
Typical application areas

for medium load requirements

suitable for indoor/outdoor applications applications

especially for freely suspended travel distances and for low-duty gliding applications up to 30 ft (9m)

wood/stone processing, packaging industry, supply system, handling, adjusting equipment, machine tools
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

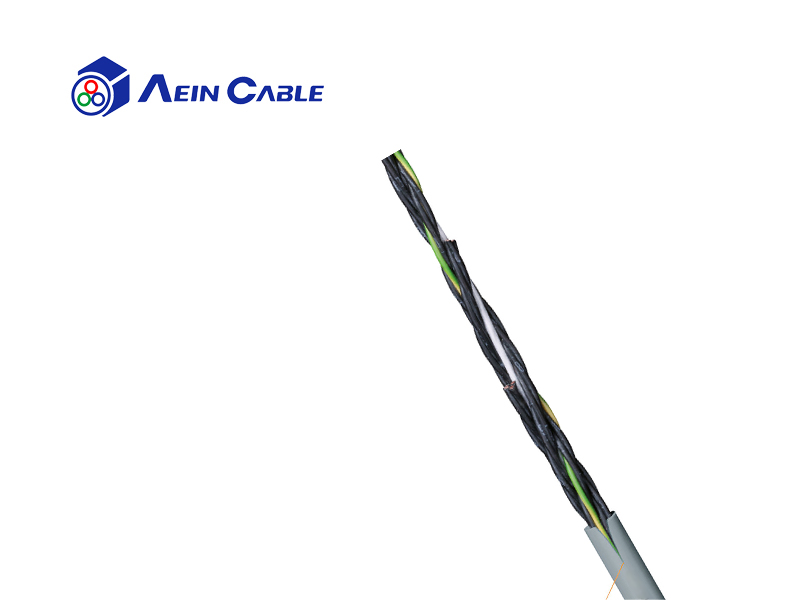

Product structure

	Min. bend radius, e-chain® (factor)	8.0 x d
	Min. bend radius, e-chain®	2.1 inch (53.6 mm)
	Min. bend radius, flexible (factor)	7.5 x d
	Min. bend radius, flexible	2.0 inch (50.3 mm)
	Min. bend radius, fixed (factor)	5.0 x d
	Min. bend radius, fixed	1.3 inch (33.5 mm)
	Temperature, e-chain® min.	41 °F (5 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	+23°F to +176°F (-5°C to +80°C)
	Temperature, fixed	-4°F to +194°F (-20°C to +90°C)
	v max., unsupported	10 ft/s (3 m/s)
	v max. gliding	7 ft/s (2 m/s)
	a. max.	65.6 ft/s² (20 m/s²)
	Length of travel	Unsupported up to 33 ft (10 m)
	Torsion	±90°, with 1 m cable length

	Conductor	Finely stranded bundled bare copper wires. Designed in accordance with ASTM B174-95
	Conductor insulation	Mechanically high-quality, PVC/Nylon.
	Conductor construction	Conductors concentrically layered with short pitch.
	Conductor identification	Cores black with white numerals, one core green-yellow
	Inner jacket	PVC mixture suited to the requirements in e-chains®
	Unshielded	Yes
	Outer jacket	Oil-resistant UV-resistant PVC, low-adhesion blend, adapted to the requirements of the Energy Chain®. Silicon-free in compliance with PV 3.10.7 - status 1992
	Jacket color	Silver grey (similar to RAL 7001)
