Product introduction
  • 01 Product application
        • For heacy duty applications
        • Almost unlimited resistance to oil
        • Indoor and outdoor applications without direct solar radiation
        • Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications
        • Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, indoor cranes, low-temperature applications

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

1.8 inch (45 mm)

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

1.4 inch (36mm)

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

0.9 inch (24mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max. unsupproted

33 ft/s (10 m/s)

v max. gliding
16 ft/s (5 m/s)

a max., twisted

164.0 ft/s² (50 m/s²)

Length of travel

Travels up to 328 ft (100 m)

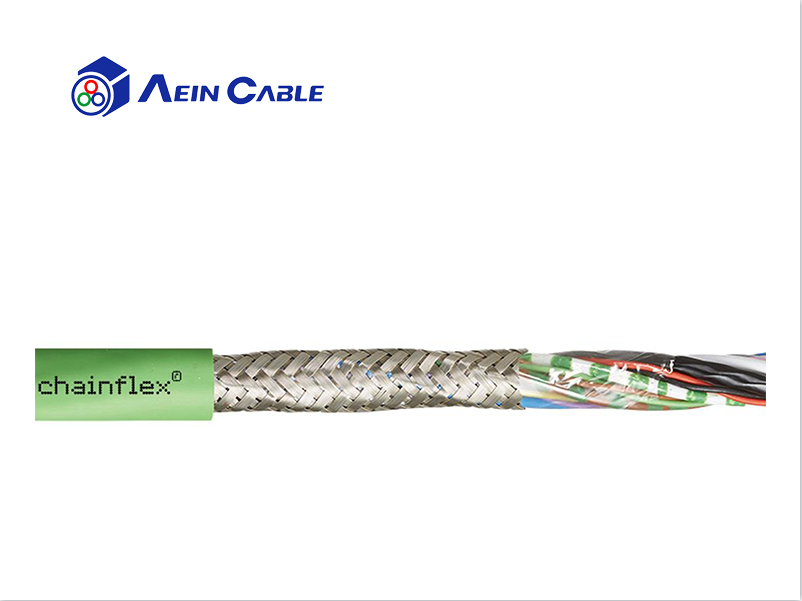

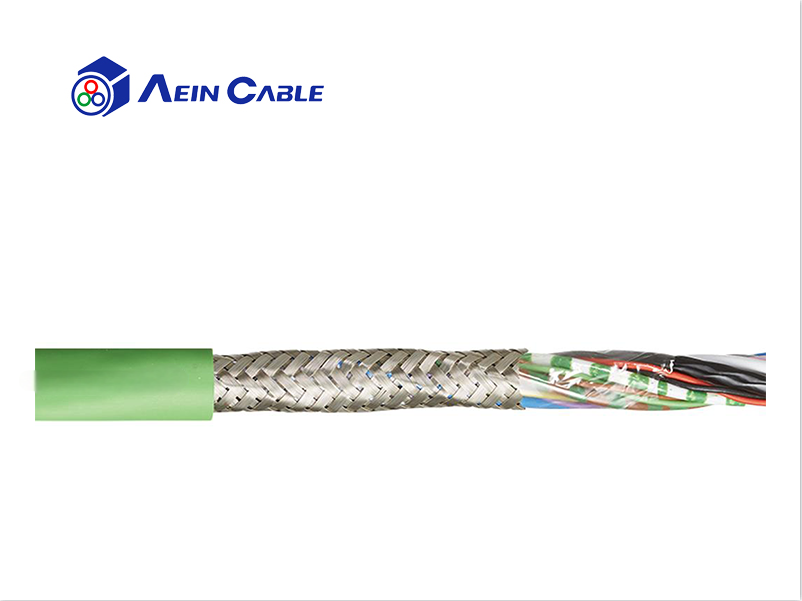

Cable structure


Stranded conductor in especially bending-resistant version consisting of tinned copper wires (following DIN EN 60228).

Conductor insulation

Mechanically high-quality TPE mixture (According to bus specification)

Overall shield

Bending-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical.




Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of iguPUR, adapted to suit the requirements in energy chains®

Inner jacket TPE mixture suited to the requirements in e-chains®

Jacket color

Yellow-green (similar to RAL 6018)
