Product introduction
  • 01 Product application as shielded, low capacity feedback, encoder, resolver, spedo sensor, signal & system cables for EMC compatible connecting in maschine and plant enginering, as well as in drive and control technology, for high electrical and mechanical requirements in drag chain applications, moving drive systems and in the field of robotic technology.
  • 02 Product characteristicsDESINA-conform (jacket colour green RAL 6018) cURus approved 300V, 80°C halogen free and flame-retardant acc. to IEC 60332-1-2, FT1 largely resistant to, grease, coolant fluids and lubricants resistant to oil, IEC 60811-404 (VDE 0473-811-404)UV-resistant
    low adhesion, silicone-free, space- and weight-saving
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

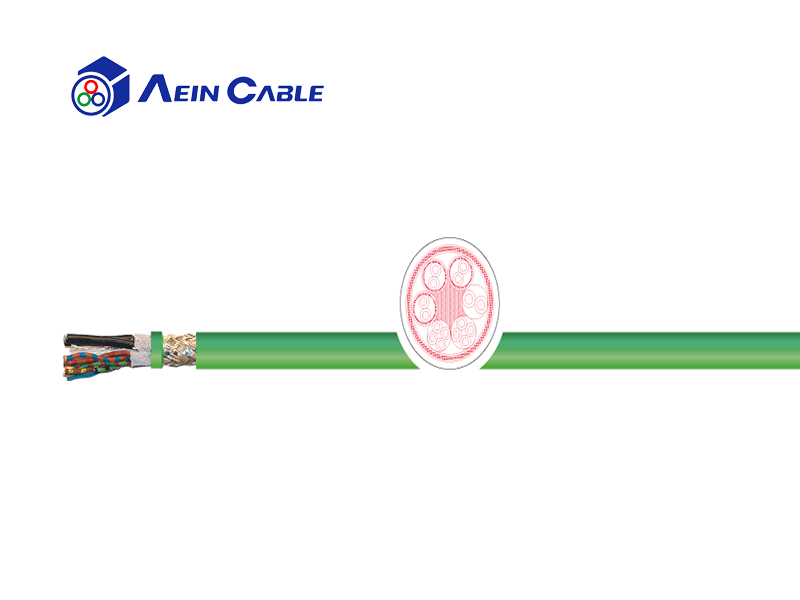

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation: PELON®2
Core identification: Acc. to system specification (on request)
Stranding: Cores stranded to pairs or layers
Shield: Elements: C: copper braid tinned resp. D: spiral copper shield tinned, opt. coverage appr. 85%
Element sheath material: TPE - black (if mentioned 12Y)
Overall stranding: Elements strand. together
Shield3: Copper braid tinned, opt. coverage appr. 85%
Outer sheath: PUR
Sheath colour: GN - RAL 6018 (DESINA), OR - RAL 2003 or BK - RAL 9005
Rated voltage: 300 V, no high-voltage purpose
Testing voltage: 500 V
Conductor resistance: Acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Insulation resistance: Min. 20 MΩ x km
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d < 10 m TL | 10 x d ≥ 10 m TL
Operat. temp. fixed min/max: - 50 °C / +80 °C
Operat. temp. moved min/max: - 40 °C / +80 °C
Halogen free: Yes
Burning behavior: Flame-retardent acc. to IEC 60332-1-2, FT1
Torsion: 30°/m
Standard: UL/CSA: cURus 300V, 80°C
Speed: Self-supporting - max. 5 m/s
Acceleration: Max. 50 m/s²
