Product introduction
  • 01 Product application
      Typical application areas
      • For heaviest duty applications
      • Almost unlimited resistance to oil, also with bio-oils
      • Indoor and outdoor applications, UV resistant
      • Unsupported and gliding travel distances up to 1,312 ft (400 m) and more
      • Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
      • For maximum EMC protection
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

4.3 inch (110.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

3.5 inch (88.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

2.2 inch (55.0 mm)

Temperature, e-chain® min.

-31 °F (-35 °C)

Temperature, e-chain® max.

212 °F (100 °C)

Temperature, flexible

-31°F to +212°F (-35°C to +100°C)

Temperature, fixed

-48°F to +212°F (-55°C to +100°C)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

20 ft/s (6 m/s)

a. max.

328.1 ft/s² (100 m/s²)

Length of travel

Travels up to 1312 ft and more (400 m and more)

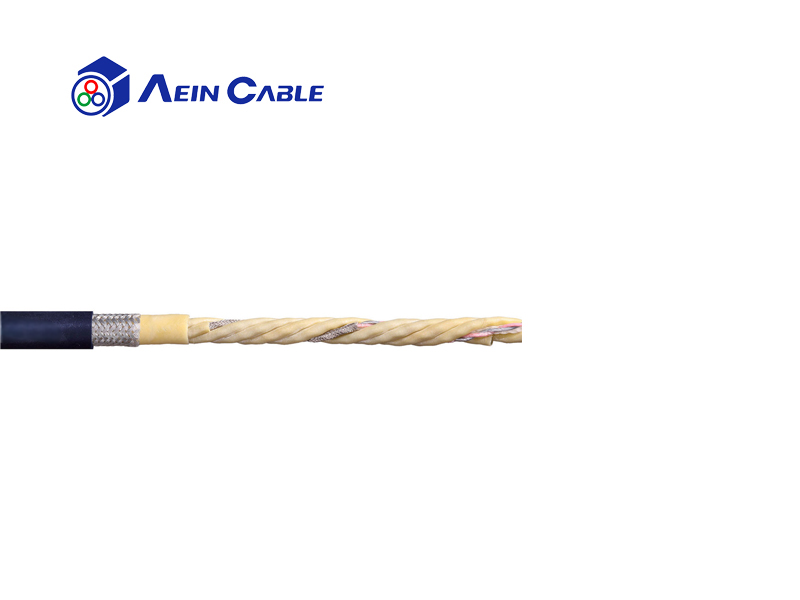

Cable structure


Stranded conductor in especially bending-resistant version consisting of tinned copper wires (following DIN EN 60228).

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

2 cores each stranded in pairs with short pitch lengths, core pairs also stranded with short pitch lengths.

Conductor identification

Colour code according to DIN 47100

Element shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Element jacket

TPE mixture adapted to suit the requirements in e-chains®.

Inner jacket

TPE mixture suited to the requirements in e-chains®

Overall shield

Highly flexible, alloyed special shield. Cover about 70% linear, about 90% optical.




Outer jacket

Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.


Jacket color

Steel blue (similar to RAL 5011)
