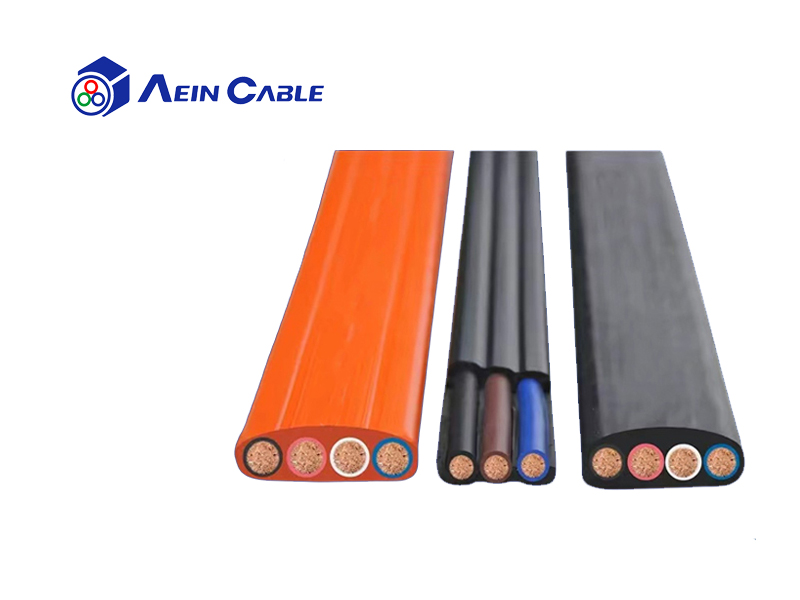

Power and control cables for trolley systems, transmission lines, machinery, especially cranes, lifts, cranes and container Bridges. It is also suitable for applications where the cable is strongly bent in a horizontal permanent movement operation. Suitable for dry, wet, wet room.
Certification : European CE certification
Insulation material : PVC
Sheath material : PVC
Voltage : 450/750V
Low temperature : —5°C —15°C
High temperature : 70°C
Shielding : Unshield
Installation way : Fixed installation Occasional flexing
Environment : General indoor environment General outdoor environment
Compared with circular cables, the bending radius is significantly smaller
Conductor material: bare copper stranded wire
Conductor class: in accordance with DIN VDE 0295 5class IEC 60228 5class
Core identification: Conform to VDE 0293-308At most5A wire is painted with color from 6 Black wires with white digits root to maximum 6 Wire, white, black numbers, with or without GNYE
Stranded: cores resp. bundles parallel side by side
Outer sheath: Special PVC
Jacket color: Black RAL9005;
Rated voltage:Uo/U 450/750 V
Conductor resistance: in accordance with IEC 60228 cl. 5 standard
Insulation resistance: minimum 200 MΩ x km
Capacitor: core/core about 120 nF/km;
Min. bending radius fixed: in accordance with DIN VDE 0298 The first 3 Part.
Min. bending radius moved: in accordance with DIN VDE 0298 The first 3 Part.
Operat. temp. fixed min/max：-15°C/+70°C.
Operat. temp. moved min/max：-5°C/+60°C.
Burning behavior: self-extinguishingFlame retardant, conformingIEC 60332-1 standard
Standard:Conform to DIN EN 50214
Product identification:Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE
Cables are the electrical products used for the transmission of electrical energy, the transfer of information and the conversion of electromagnetic energy. Wires and cables play an important role in all economic activities and social life.Wherever thereis production, transport and economic activity, wires and cables are inseparable, so the quality of wire and cable directly affects our lives.
