Product introduction
-
01 Product application
Especially used for lifts, cranes, floor conveyor systems, elevators and transfer lines. Thanks to its flat structure, recommended for implementations where space is at a minimum and require smaller bending radius over that of round cables.
-
02 Product characteristics
COLD RESISTANT
TEAR RESISTANT
UV RESISTANT
ELECTROMAGNETIC COMPATIBILITY
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

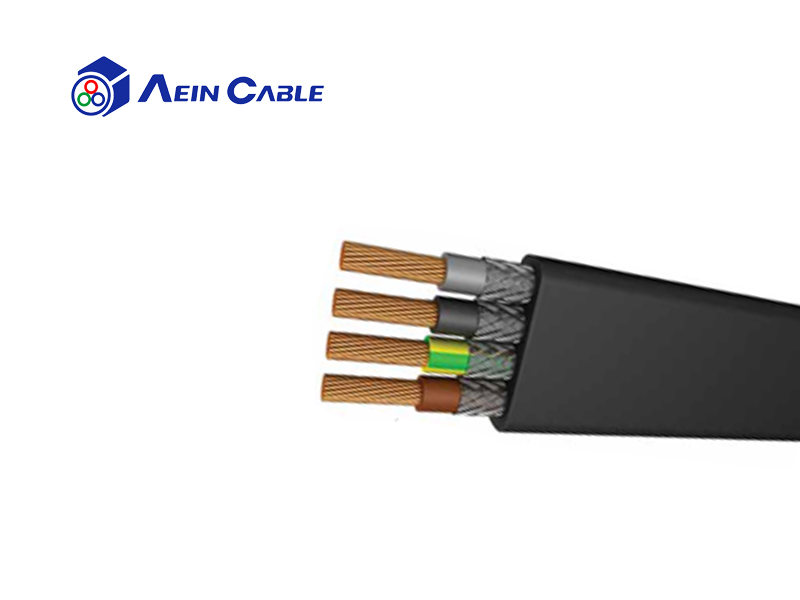

Product structure
CONDUCTOR : Electrolytic annealed, stranded plain copper wires (tinned conductor on request)
SEPARATOR : A suitable tape may be applied over the conductor
INSULATION : rubber (EPR) compound
INNER SHEATH : elastomer compound
SCREEN : Tinned copper wires braided
OUTER SHEATH : elastomer compound
COLOR : Black (other colors on request)
CONDUCTOR OPERATING TEMPERATURE : Max. 60ºC
CONDUCTOR SHORT-CIRCUIT TEMPERATURE : Max. 200ºC
TEMP. ON CABLE SURFACE : Max. +50ºC
MIN INSTALLATION TEMPERATURE : -25ºC
Rated Voltage 300 / 500 V, (0,6 / 1 kV)
Max. Operating AC Voltage 0,7 / 1.2 kV
Max. Operating DC Voltage 0,9 / 1.8 kV
AC Test Voltage 3,5 kV
