Product introduction
-
01 Product application
These cables are designed for the connection of mobile equipment and machines under very high mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in mining and industry, quarries and building sites.
-
02 Product characteristics
Flexible
Heat resistant
Tear resistant
Oil resistant
Flame retardant
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

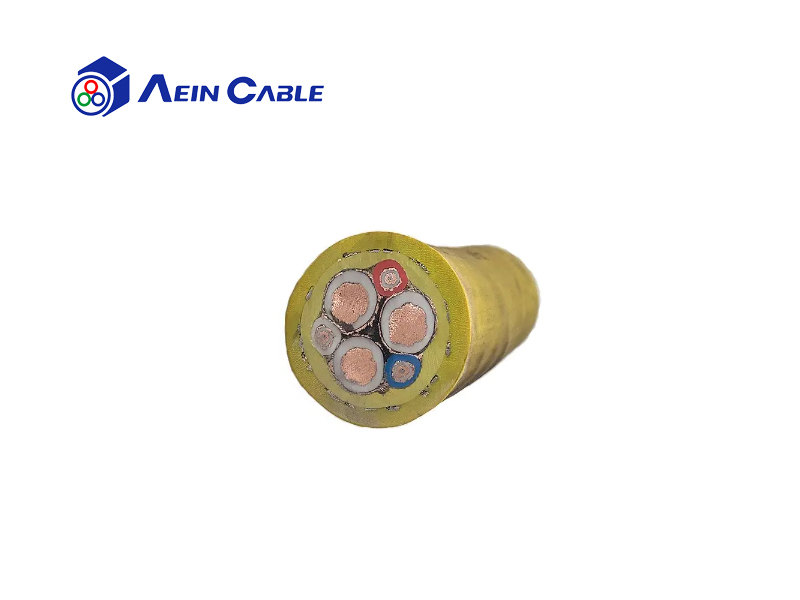

Product structure
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation: Heat resistant EPR type 3GI3.
Earth Conductor: Distributed as spiral of tinned copper wires over core insulating coverings (coding .../3E) or located concentrically between the inner and outer sheaths (coding ...kon).
Control Cores: Laid in the interstices, film wrap.
Inner Sheath: Rubber type GM1b.
Outer Sheath : Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
