Product introduction
-
01 Product application
These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since
they are not designed to be used for power supply.
-
02 Product characteristics
• 300 V version
• Yv type reinforced sheath
• Hydrocarbon resistant
• Anti termit / anti rodent
• Oil resistant
• LSF (Low Smoke) version
• UV resistant
• Multi core / Multi triple / Multi quad
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

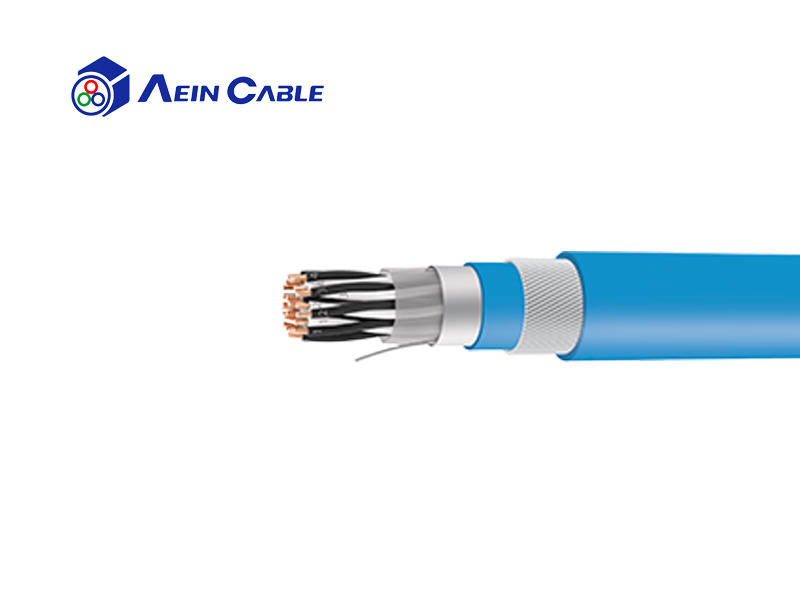

Product structure
CONDUCTOR :Electrolytic, stranded, annealed plain copper wires
INSULATION :XLPE compound Black / White twisted pairs with numbered cores
BINDER TAPE :Polyester foil on overall cable core formed by stranded pairs
COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
INNER SHEATH :PVC compound
ARMOUR :Round galvanised steel wires
OUTER SHEATH :Flame retardant PVC compound Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request
RATED VOLTAGE :500 V a.c.
AC TEST VOLTAGE :2000 V x 1 min. (core:core / core: screen)
WORKING TEMPERATURE :-40°C / + 90°C (during operation) – 5 °C / + 50°C (during installation)
MIN BENDING RADIUS (FIXED) :10 x D
