Product introduction
-
01 Product application
These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance
sources, since they are not designed to be used for power supply.
-
02 Product characteristics
Hydrocarbon resistant
Oil resistant
Anti termit / anti rodent
UV resistant
LSF (Low Smoke) version
Flame retardant
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

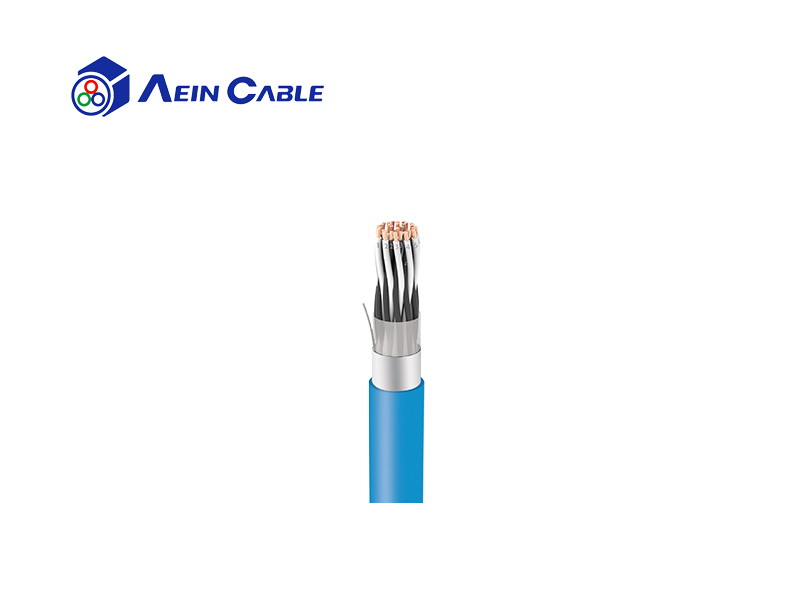

Product structure
CONDUCTOR :Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
INSULATION :XLPE compound to EN50290-2-29 Black / White twisted pairs with numbered cores
BINDER TAPE :Polyester foil on overall cable core formed by stranded pairs.
COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
OUTER SHEATH :Flame retardant PVC compound to EN50290-2-22
RATED VOLTAGE :500 V a.c.
AC TEST VOLTAGE :2000 V x 1 min. (core:core / core: screen)
WORKıNG TEMPERATURE :-40°C / + 90°C (during operation) – 5 °C / + 50°C (during installation)
MıN BENDıNG RADıUS (FıXED) :7,5 x D
