Product introduction
-

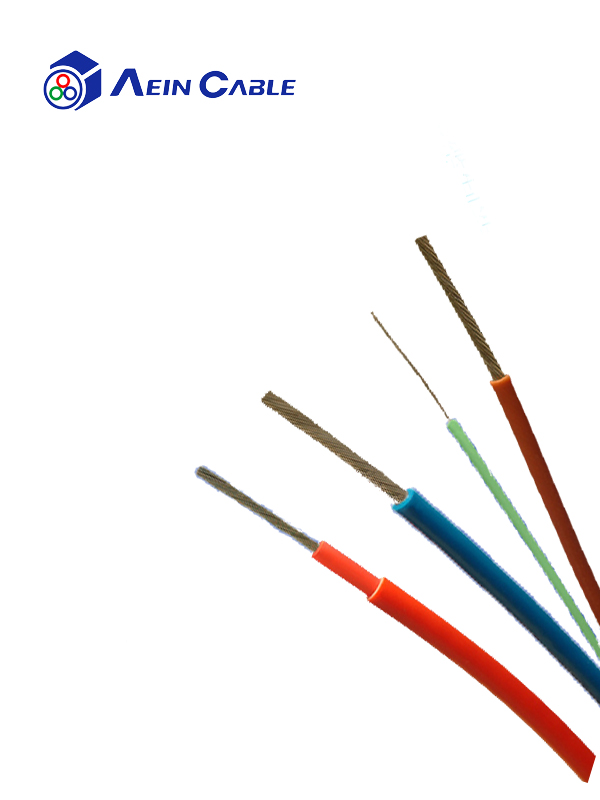

01 Product application UL&CUL certified PVC Wiring cable for the inner sheath wiring of electrical and electronic equipment in the control cabinet.
-
02 Product characteristics
•"International" certified control cable (UL&CUL)
• All usual standard colors are available
-
03 Technical certification • Conform to RoHS standard
• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor material: Copper stranded wire
Conductor class: acc. to UL758 Standard, acc. to IEC 60228 class 5
Core insulation:PVC
Core identification: different colors
Rated voltage:1000V
Test voltage:3000V
Conductor resistance:UL1581 ASTM class C
Minimum bending radius fixed:7.5x d
Minimum bending radius flexible:15x d
Operat. temp. fixed min/max:-15°C/105°C
Burning behavor: Self extinguishing and flame retardant IEC60332-1-2.UL - VW 1 and FT 1
Approvals:UL&CUL&CE
Product identification: E503807 ® AWM Model number specification temperature voltage VW-1 or C® AWM I A specification temperature voltage FT1 SHANGHAI
AEIN Model number specification voltage CE
Product parameter
