Product introduction
-
01 Product application UL&Cul certified cables can be used as power, control and connection cables in electrical installations for non-destructive data and signal transmission, fixed lay and mobile applications without tensile stress and without prescribed cable routing.
Suitable for use in dry, wet and humid rooms.
-
02 Product characteristics • UL&CUL certification
• Flame retardant coincidence IEC 60332-1-2,FT1,VW-1
• Up to 1000 V parallel laying with other cables with identical current voltage is permitted
-
03 Technical certification • Conform to RoHS
• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

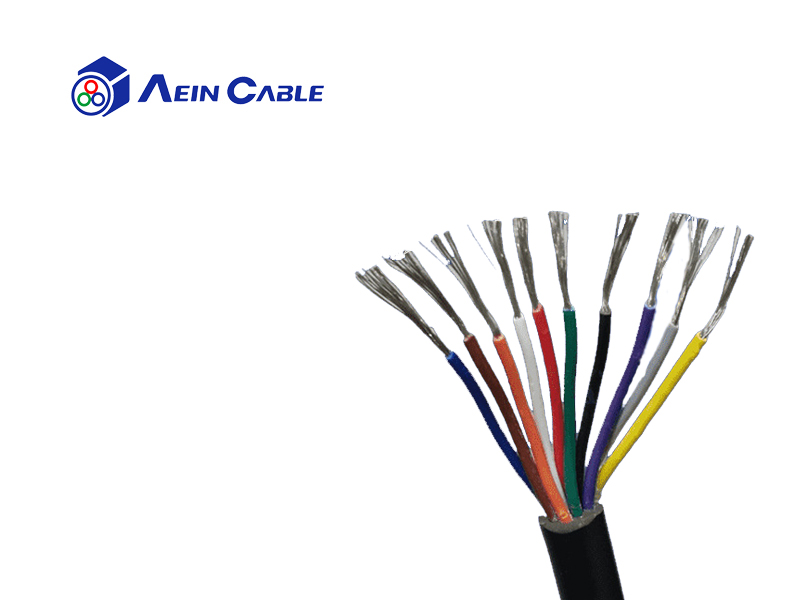

Product structure
Conductor material: Bare copper
Conductor class: acc. to UL758 Standard, DIN VDE 0295 class 5 or. IEC 60228 class 5
Core insulation:PVC,XLPE Optional
Core identification: acc. to DIN VDE 0293 Black with white numbering,1 x GNYE
Stranding: Stranded in layers
Outer sheath: PVC
Jacket color: Gray RAL 7001 or Black RAL9005
Rated voltage:1000 V
Test voltage:3 kV
Conductor resistance:UL1581 ASTM class C
Insulation resistance PVC:+20 °C ≥ 20 MΩ x km;PVC:+20 °C ≥ 200 MΩ x km
Minimum bending radius fixed:4x d
Minimum bending radius moved:10x d
Operat. temp. fixed min/max: -15 °C / +105 °C
Operat. temp. moved min/max: -5 °C / +105°C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC
60332-1-2, FT1, VW-1
Approvals:UL&CUL:UL1571,UL1589,UL20276 If needed CE Certification or halogen-free requirements shall be indicated separately
Product identification: E503807 ® AWM Model number specification temperature voltage VW-1 or ® AWM I A specification temperature voltage FT2
