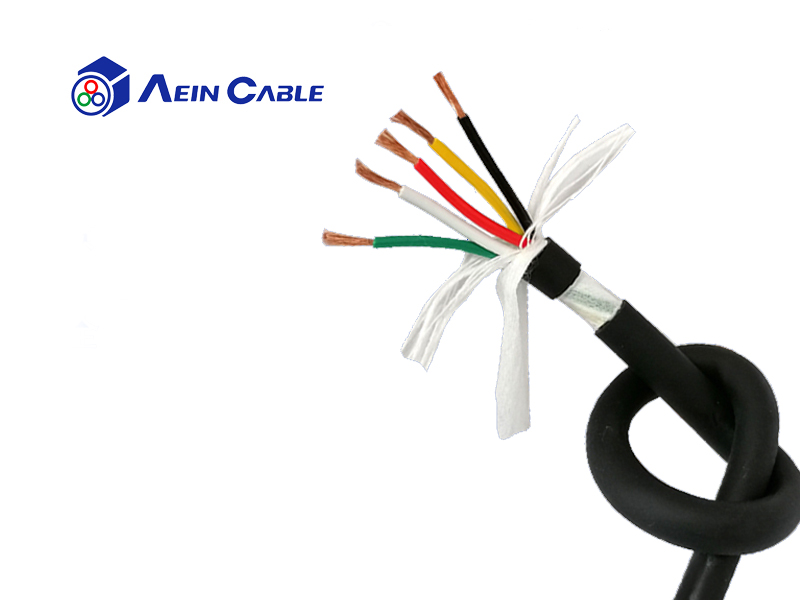

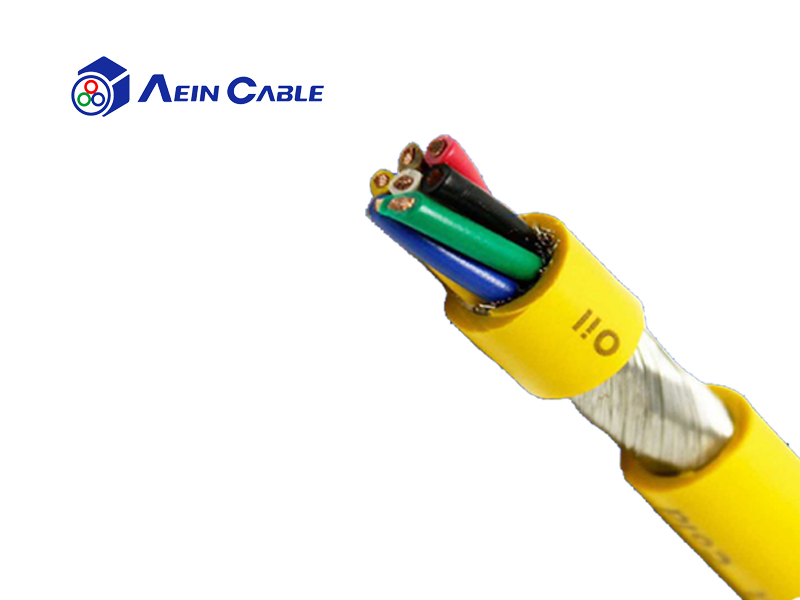

A drag chain cable, also known as a continuous flex cable, is designed for applications where the cable experiences constant movement, bending, and torsion inside cable carrier systems.
Unlike standard cables, drag chain cables must withstand millions of bending cycles without cracking or signal failure.

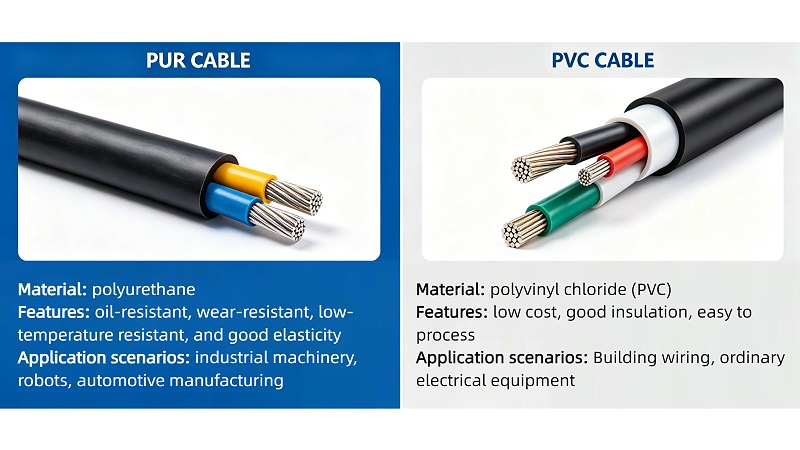

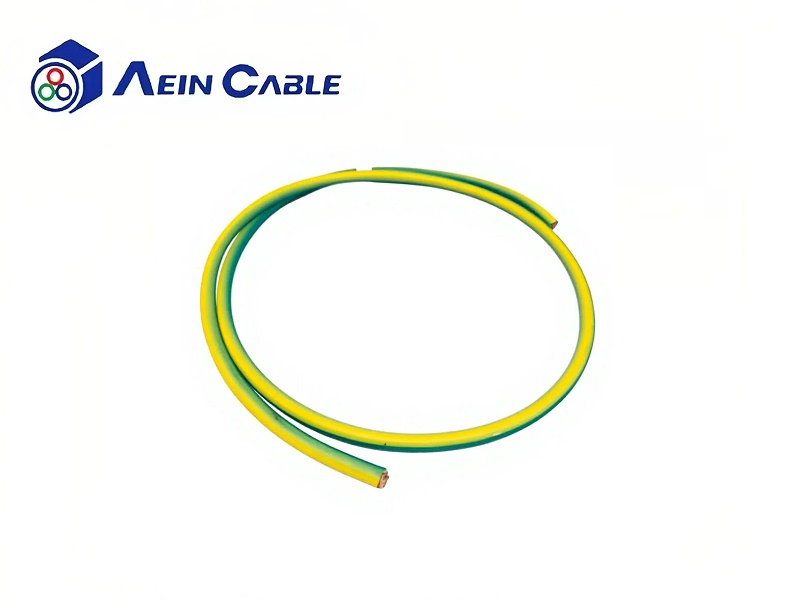

PVC (Polyvinyl Chloride) is one of the most commonly used cable jacket materials due to its low cos
PVC cables are usually suitable for light-duty or static applications rather

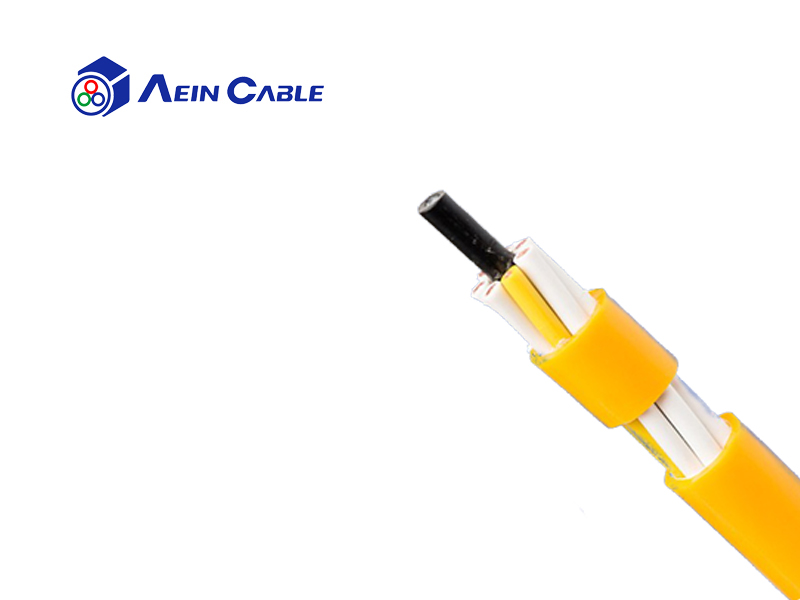

PUR (Polyurethane) is a high-performance cable jacket material designed for harsh industrial environments and dynamic motion applications.
Although PUR cables are more expensive than PVC cables, they usually provide a much longer service life in continuous flex applications.
1. Flexibility
Flexibility is one of the most important factors for drag chain applications.
PVC Cable
PVC becomes relatively stiff after long-term bending and may crack under repeated flexing.
PUR Cable
PUR maintains excellent flexibility even under continuous motion and small bending radii.
Winner: PUR
For high-flex drag chain systems, PUR is clearly superior.
2. Abrasion Resistance
Drag chain cables constantly rub against cable carriers and nearby cables.
PVC Cable
PVC has moderate abrasion resistance but wears relatively quickly in high-speed applications.
PUR Cable
PUR offers outstanding wear resistance and is ideal for harsh industrial environments.
Winner: PUR
PUR cable significantly outperforms PVC in abrasion resistance.
3. Oil And Chemical Resistance
Industrial automation systems often operate in oily environments.
PVC Cable
PVC has limited resistance to industrial oils and chemicals.
PUR Cable
PUR is highly resistant to oils, coolants, grease, and chemicals.
Winner: PUR
PUR is the preferred choice for demanding industrial conditions.
4. Service Life
Cable lifespan directly affects maintenance costs and machine downtime.
PVC Cable
PVC cables may fail after a relatively short period in continuous flex systems.
PUR Cable
High-quality PUR drag chain cables can withstand millions of bending cycles.
Winner: PUR
PUR provides a significantly longer service life.
5. Cost
PVC Cable
PVC cables are more affordable and suitable for budget-sensitive projects.
PUR Cable
PUR cables have a higher upfront cost.
However, the longer lifespan often reduces long-term replacement and maintenance costs.
Winner: Depends On Application
For light-duty applications, PVC may be sufficient.
For continuous flex industrial systems, PUR usually provides better long-term value.
When Should You Choose PVC Cable?
PVC cable may be suitable when:
-
The cable movement is limited
-
The application is low-speed
-
Budget is the primary concern
-
The environment is relatively clean
-
Flexing frequency is low
Typical applications include:
-
Static installations
-
Basic control systems
-
Low-cost machinery
When Should You Choose PUR Cable?
PUR cable is recommended when:
-
Continuous flexing is required
-
The system operates at high speed
-
The environment contains oil or chemicals
-
Long service life is critical
-
Machine downtime must be minimized
Typical applications include:
Common Mistakes When Choosing Drag Chain Cable
Using Standard PVC Cable In Dynamic Applications
One of the most common mistakes is using ordinary PVC cable in continuous motion systems.
Standard PVC cables are not designed for millions of bending cycles and may crack quickly.
Ignoring Bending Radius
Incorrect bending radius can dramatically shorten cable lifespan.
Always follow the manufacturer’s recommended minimum bending radius.
Choosing Cable Based Only On Price
Low-cost cables may lead to:
-
Frequent replacement
-
Production downtime
-
Higher maintenance costs
In many cases, premium PUR cables are more cost-effective over time.
Which Cable Is Better For Drag Chains?
For most industrial drag chain applications, PUR cable is generally the better choice.
It provides:
PVC cable may still be suitable for low-flex or budget-sensitive applications, but for high-performance automation systems, PUR drag chain cables are usually the preferred solution.
FAQ
Can PVC Cable Be Used In Drag Chains?
Yes, but only in light-duty applications with limited movement. Standard PVC cables are not ideal for continuous flex systems.
Why Does Drag Chain Cable Crack?
Cable cracking is often caused by:
How Long Does PUR Drag Chain Cable Last?
High-quality PUR drag chain cables can withstand millions of bending cycles depending on operating conditions.
Is PUR Cable More Expensive Than PVC?
Yes, PUR cable is usually more expensive initially, but it often reduces long-term maintenance and replacement costs.
Conclusion
Choosing the right cable material is essential for reliable drag chain performance.
While PVC cables offer a lower initial cost, PUR cables provide superior flexibility, durability, and service life for demanding industrial automation systems.
For applications involving continuous motion, robotics, and high-speed machinery, PUR drag chain cable is generally the better long-term investment.
