1. Using the Wrong Cable for Continuous Flexing

One of the most common mistakes is installing standard cables in applications that require constant movement.

At first glance, many cables look similar.

However, cables designed for static installations are fundamentally different from drag chain cables and robotic cables.

A packaging machine manufacturer once reported recurring cable failures every few months. After investigating the problem, engineers discovered that standard control cables had been installed inside a continuously moving drag chain.

The cables were never designed to withstand repeated bending.

The result:

• Cracked insulation
• Broken conductors
• Unexpected machine downtime

Prevention

Always select cables specifically designed for dynamic applications.

Look for:

• High-flex conductors
• Specialized insulation materials
• Tested bending cycle ratings
• Drag chain certification

When movement is involved, cable design matters.

2. Ignoring Minimum Bending Radius

Every cable has a minimum bending radius.

Exceeding this limit places excessive stress on conductors and insulation.

Imagine repeatedly bending a metal paperclip.

Eventually, it breaks.

Cable conductors behave in a similar way.

Many failures occur because installers attempt to save space by routing cables through extremely tight bends.

Over time, conductor strands begin to fatigue and fracture.

Warning Signs

• Intermittent signal loss
• Unexpected servo alarms
• Broken conductors inside intact insulation

Prevention

Follow the manufacturer's specified bending radius.

For dynamic applications, allow sufficient space within drag chains and cable carriers.

A properly routed cable can last years longer than one installed incorrectly.

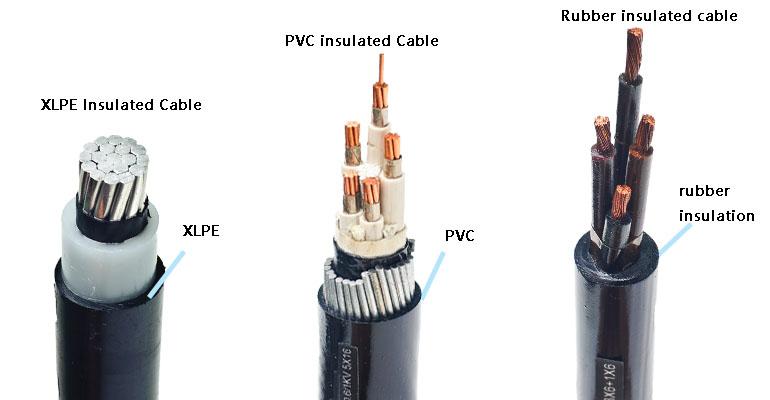

3. Choosing PVC When PUR Is Required

Many buyers focus primarily on price.

As a result, PVC cables are sometimes selected for environments where PUR cables are the better solution.

PVC is economical and suitable for many industrial applications.

However, it may struggle in environments involving:

• Abrasion
• Oil exposure
• Continuous flexing
• Low temperatures

PUR jackets generally provide superior:

• Wear resistance
• Flexibility
• Oil resistance
• Mechanical durability

The initial cost difference is often insignificant compared to the cost of downtime.

Prevention

Evaluate the operating environment before selecting jacket materials.

Ask:

• Will the cable experience constant motion?
• Is oil exposure likely?
• Are abrasive surfaces present?
• Are temperatures extreme?

The answers will help determine whether PVC or PUR is the better choice.

4. Electromagnetic Interference (EMI)

Modern factories contain:

• Variable frequency drives (VFDs)
• Servo motors
• Industrial Ethernet systems
• High-power equipment

All of these can generate electromagnetic interference.

Without proper shielding, nearby cables may experience:

• Communication errors
• Encoder feedback problems
• Signal instability
• Unexpected machine behavior

Many engineers initially suspect the drive or controller when troubleshooting these issues.

The cable is often overlooked.

Prevention

Use shielded cables where EMI is present.

Proper grounding is equally important.

A high-quality shield is only effective when installed correctly.

For servo systems, shielding is frequently essential rather than optional.

5. Improper Cable Installation

Even the best cable can fail if installed incorrectly.

Common installation mistakes include:

• Excessive pulling force
• Twisting during installation
• Poor strain relief
• Overfilled drag chains

These issues create mechanical stress that shortens cable life.

Real-World Example

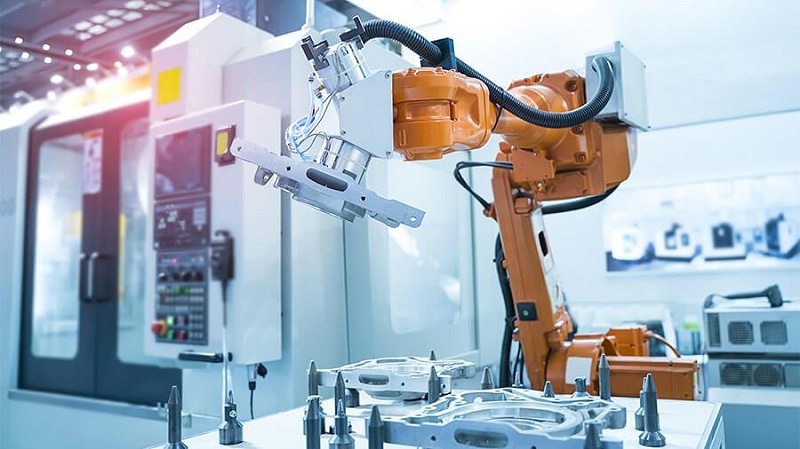

A robotic welding system experienced repeated cable failures despite using premium robotic cables.

The root cause was not the cable.

The cable had been twisted during installation, creating continuous torsional stress beyond its design limits.

Prevention

Follow installation guidelines carefully.

Pay attention to:

• Pulling tension
• Twist limits
• Strain relief placement
• Drag chain fill ratios

Installation quality often determines long-term reliability.

6. Exposure to Harsh Environmental Conditions

Industrial environments vary dramatically.

A cable that performs perfectly inside a clean factory may fail quickly in:

• Mining operations

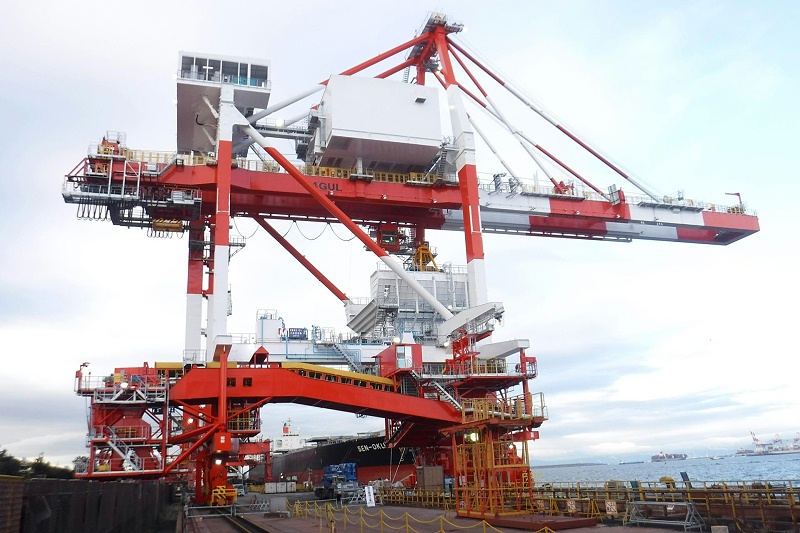

• Ports
• Steel mills
• Offshore platforms

Environmental factors include:

• UV radiation
• Chemicals
• Moisture
• Salt spray
• Extreme temperatures

Ignoring these factors can significantly reduce cable life expectancy.

Prevention

Select cables designed for the specific environment.

For example:

• UV-resistant cables for outdoor use
• Oil-resistant cables for machinery
• Marine-grade cables for coastal environments
• Low-temperature cables for cold climates

The environment should always influence cable selection.

7. Purchasing Based on Price Alone

This may be the most expensive mistake of all.

When comparing quotations, it is tempting to focus only on unit price.

However, two cables that appear identical may differ significantly in:

• Copper quality
• Shielding coverage
• Jacket material
• Flex-life performance
• Manufacturing standards

A lower-priced cable may save a few dollars initially.

A production shutdown can cost thousands.

Ask These Questions Before Buying

• Is the cable certified?
• Has it been tested for dynamic applications?
• What is its expected service life?
• Is it suitable for my environment?
• What support does the supplier provide?

The true cost of a cable includes its performance throughout its entire lifecycle.

Preventing cable failure is often simpler than replacing failed equipment.

Here are five practical recommendations:

1. Match the cable to the application

Do not use static cables in dynamic environments.

2. Respect bending radius requirements

Avoid sharp bends and excessive stress.

3. Choose suitable materials

Select PVC, PUR, rubber, or specialized compounds based on environmental conditions.

4. Consider EMI protection

Use shielded cables when electrical noise is present.

5. Work with experienced cable manufacturers

Technical support during the selection process can prevent costly mistakes later.

Industrial cable failures rarely happen without warning.

In most cases, the root cause can be traced back to incorrect cable selection, installation errors, or environmental factors.

Understanding these seven common causes allows engineers and purchasing teams to make better decisions, improve system reliability, and reduce maintenance costs.

The right cable may cost slightly more upfront.

But in industrial automation, reliability is often worth far more than the purchase price.

Because when production stops, the most expensive component is usually not the cable—it is the downtime.

If you're evaluating cables for industrial automation, robotics, drag chain systems, or heavy-duty machinery, understanding the operating environment and application requirements is the first step toward long-term reliability.
